The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)

Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 284

An illustration from The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry, 1852, leaf 284

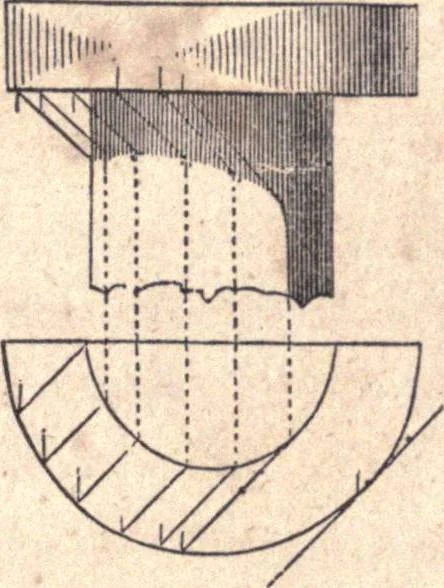

Fig. 327. Fi?. 328. 425.— To Jind the shadow thrown on a column by a squareabacus. From a and 6, (Fig. 327,) draw the rays, a c and 6 e, * and from c, erect the perpendicular, c e ; tangical to the curve atd, draw the ray, d /, and from h, corresponding to / in the plan,draw the ray, h o; take any…
