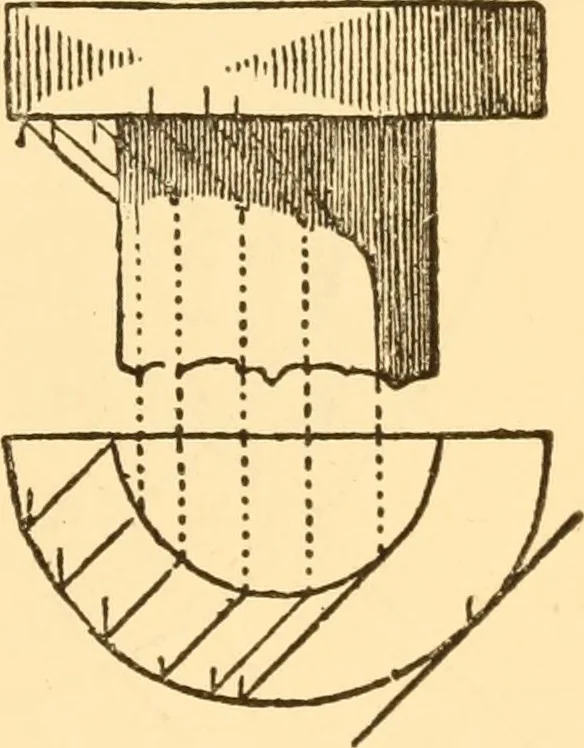

Fig. 443. Fig. 444. 581.—To Find the Shadow Tlirowii on a Column by a$4quare Atoacu§.—From a and b {Fig. 443) draw the rays acand ^^, and from ^ erect the perpendicular ^ r; tangical tothe curve at d draw the ray df, and from Ji, correspondingto/in the plan, draw the ray Jio, take any point between…
