The little gold mine. Conklin's handy manual of the mechanical arts and house plans .. (1889)
Conklin, [George W.] [from old catalog] · Chicago, Laird & Lee · leaf 330

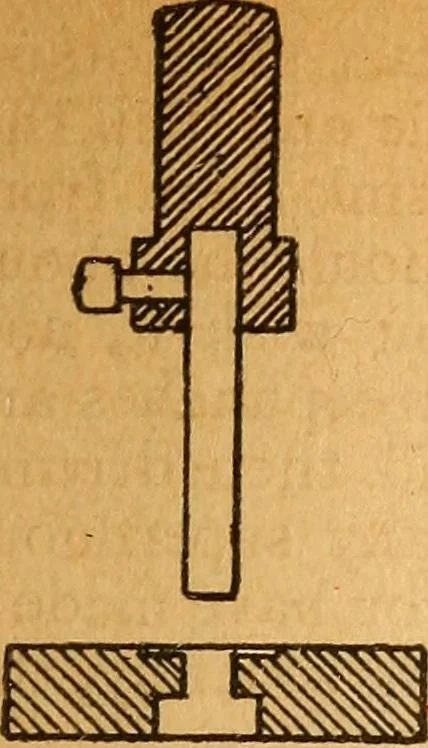

Fig. 5. … 329 fitted into a socket in the shank and held bya set screw. It is rounded on the corners togive the metal a better chance to turn uparound it. When the punch and die are setthe blank is laid on the die, and the punchshould be tight enough to carry it throughwithout a wrinkle. If the shell is not…
