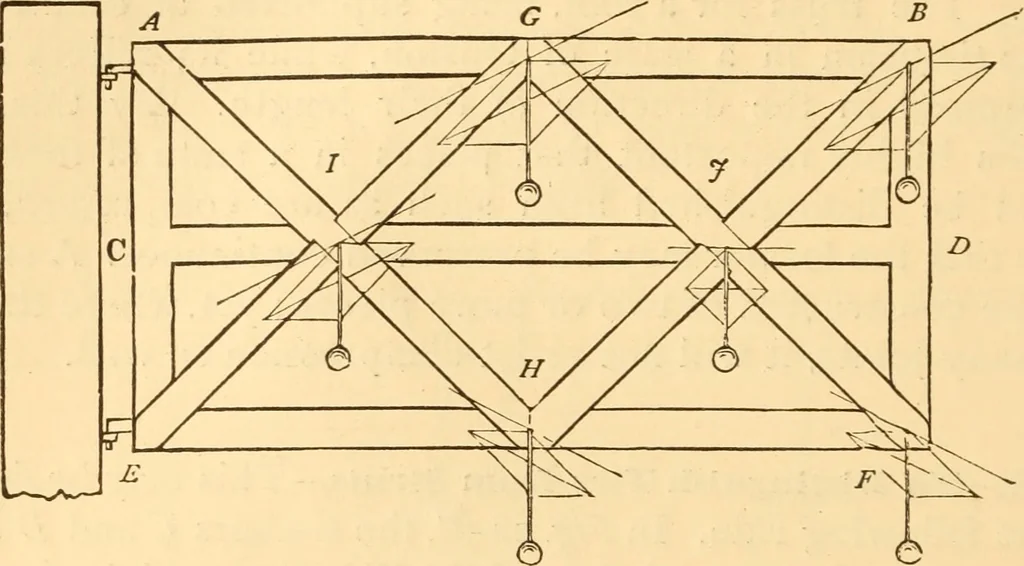

g on that side of theline h /which the straining force would occupy if unresisted,and A B on the opposite side. The place of the latter mightbe supplied by a chain or rope. In Fig. 25, the foot of therafter at A is sustained by two forces, the wall and the tie- 70 CONSTRUCTION. beam, one… … Fig, 31. 84.—Another Example—Let ^ ^ B F (Fig. 31) representa gate, supported by hinges at A and E. In this case, thestraining force is the weight of the materials, and the direc-tion of course vertical. Ascertain the dividing line at theseveral points, G, B, /, J, //, and F, It will then appear…
