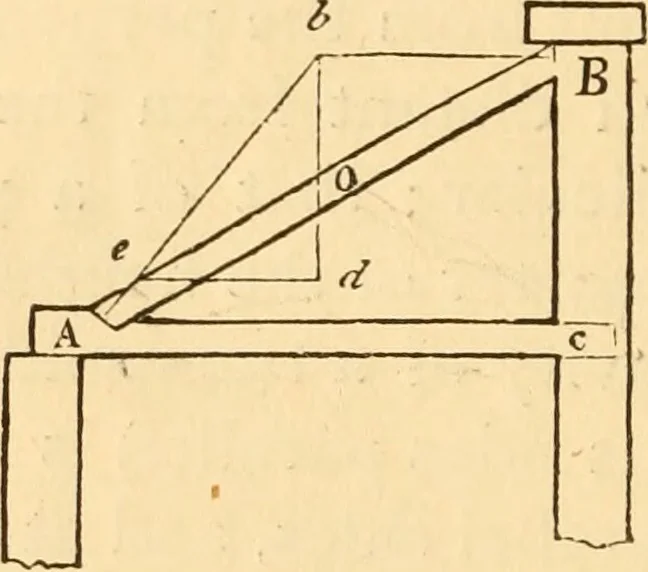

,and the intersection of those lines will indicate the point re- 72 CONSTRUCTION. quired. Or suspend the article by a cord or tliread attachedto one corner or edge ; also from the same point of suspen-sion hang a plumb-line, and mark i(s position on the face ofthe article; again, suspend the… … Fin. 32. 86.—Effect of the Weight of Inoliiie<1 Beani§.—An in-clined post or strut supporting some heavy pressure appliedat its upper end, as at Fi^. 25, exerts a pressure at its foot inthe direction of its length, or nearly so. But when such abeam is loaded uniformly over its whole length, as…
