Teachers' manual for the Prang course in drawing for graded schools, books 1-6 (1897)
Clark, John Spencer, Prang Company, Hicks Mary D, Perry, Walter Scott · Boston. Prang educ. co. · leaf 110

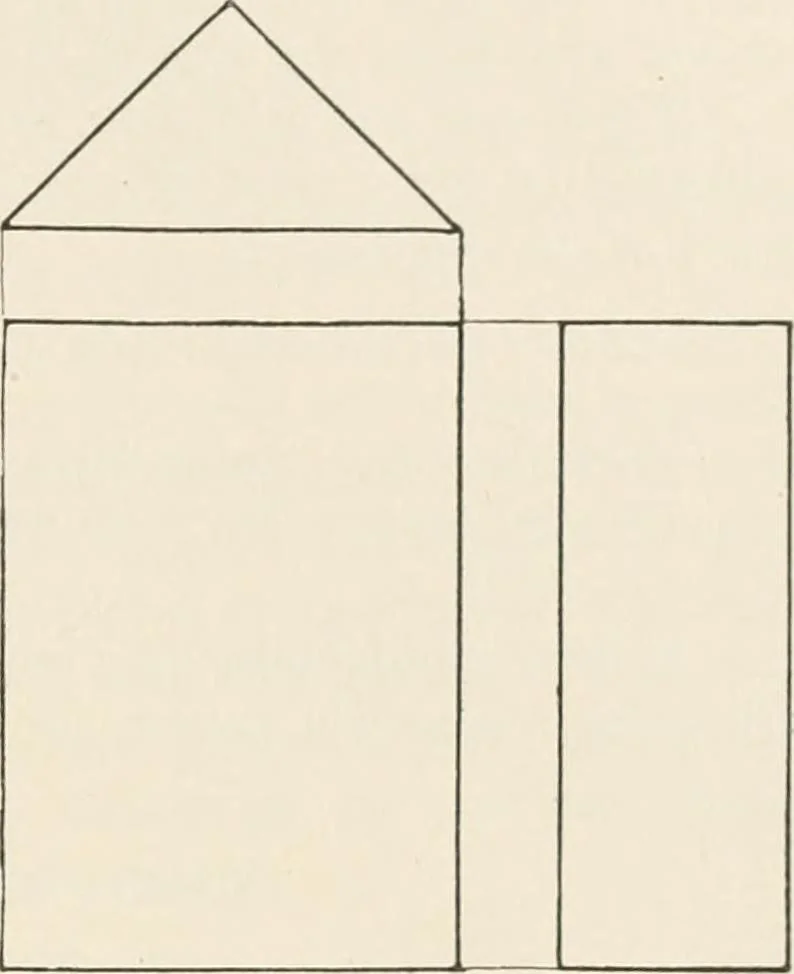

gular Prism, Prism, as the case may be. The pattern should be finished in even, firm lines. EXERCISE XIV. Construction. View Drawing. Triangular Prisms. Right-angled Triangular Prism, Facing. — A model is said to be facingwhen it is placed in a normal position and so that a whole face is in view… … For the first half of this exercise, a vertical right-angled triangular prism is placedfacing, and its front, top and side views are to be studied and drawn. The front viewis an oblong twice as high as wide. Look nowat the top view; it is a right-angled triangle.The upper edge of the front is the…
Drawing -- Study and teaching
