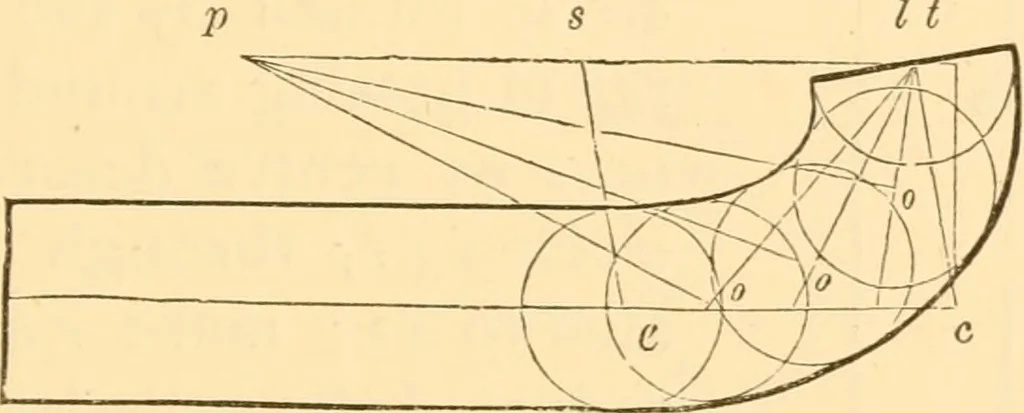

aced at right angles to ^<f; this angle ect\s then increasedby adding the angle tcl, corresponding to tcl, Fig. 146.Thus the point / is reached, and the proper position andlength of the lines ec and <;/obtained. To obtain the face-mould for a rail over a cylindrical well-hole, the same… … Fig. 14S. 270b—MaBid-SSaMing foi* a L.arger Cylinder.—Fig. 147represents a plan and a vertical section of a line passingthrousfh the centre of the rail as before. From b draw bkparallel to cd\ extend the lines /^andyV until they meet kbin k and /; from ;/ draw nl parallel X.0 ob\ through / drawIt…
