The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)

Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 371

An illustration from The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others, 1880, leaf 371

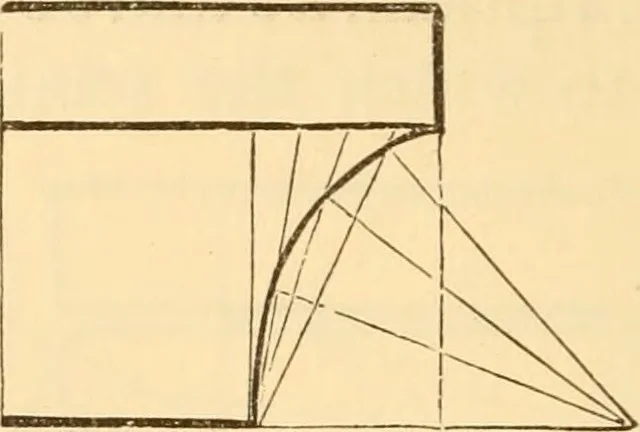

Fig. 201. Fig. 200. to ^^; complete the rectangle, abcd\ divide this into fourequal rectangles, and proceed according \.o Art. 551. 316.—The CJreciaii Cyiiia-Rever§a.—When the projection 1 \Mf Im WW V c ■ 1 1 i ■ Fig. 202. Fig. 203. is more than the height, as at Fig. 204, proceed as directedfor…
