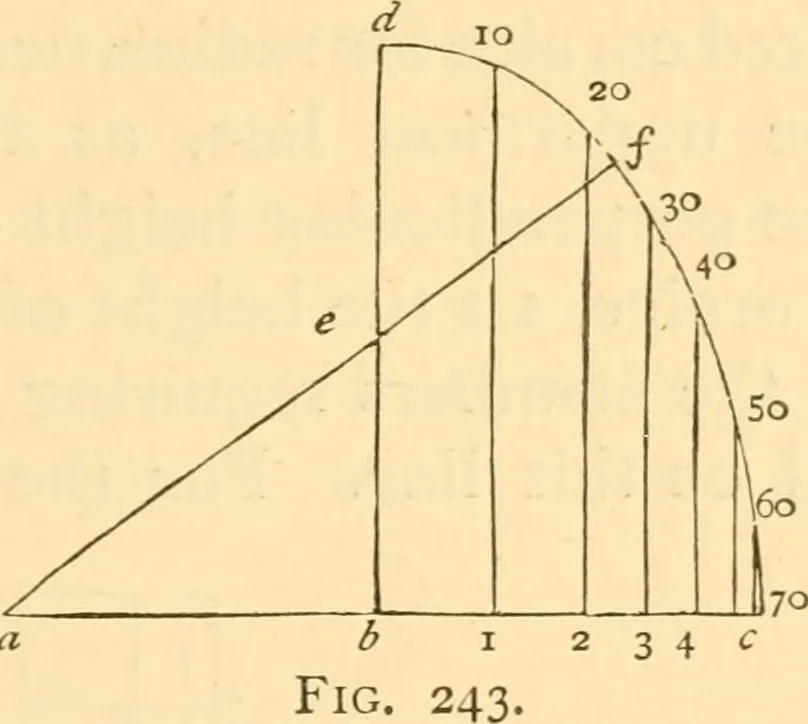

Fic. 242. PROPORTION OF CORNICES. 341 parallel to db\ then the distance b i is the projection of acornice for a building 10 feet high ; b 2, the projection at 20feet high ; b 3, the projection at 30 feet, etc. If the projec-tion of a cornice for a building 34 feet high is required,divide the arc… … from the fourth point from 30 draw a line to the base, b c,parallel with b d\ then the distance of the point at whichthat line cuts the base from b will be the projection re-quired. So proceed for a cornice of any height within 70feet. The above is based on the supposition that 36 inches
