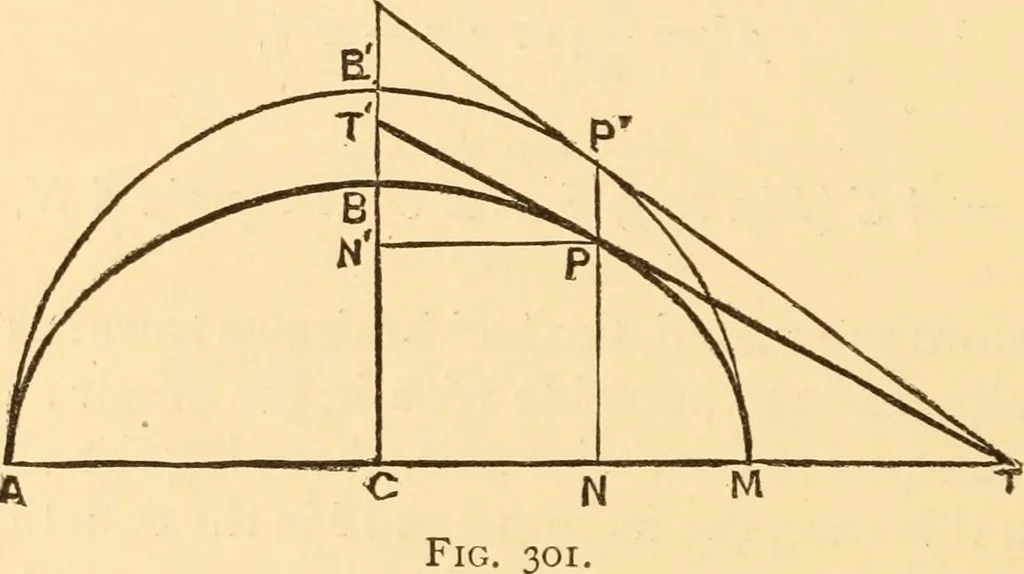

been said to be anellipse in its extreme conditions. 484 THE ELLIPSE. 453.—Ellipse: Relation of Axis to Abscissas of Axes.— Multiplying equation (173.) by ^ we have— or— ay = b x(2a-x). These four factors may be put in a proportion, thus— a \ y :: x{2a-x) : y\representing— AC Tc • ANx NM : PN\ Or :… … It is shown by writers on Conic Sections that this rela-tion is found to subsist, not only with the axes and ordinate,but also between an ordinate to any diameter and the ab-scissas of that diameter ; for example, referring to Fig. 299 -CP^-.CD :: GHy^HP: eTh. If AB PM {Fig. 301) be a semi-circle,…
