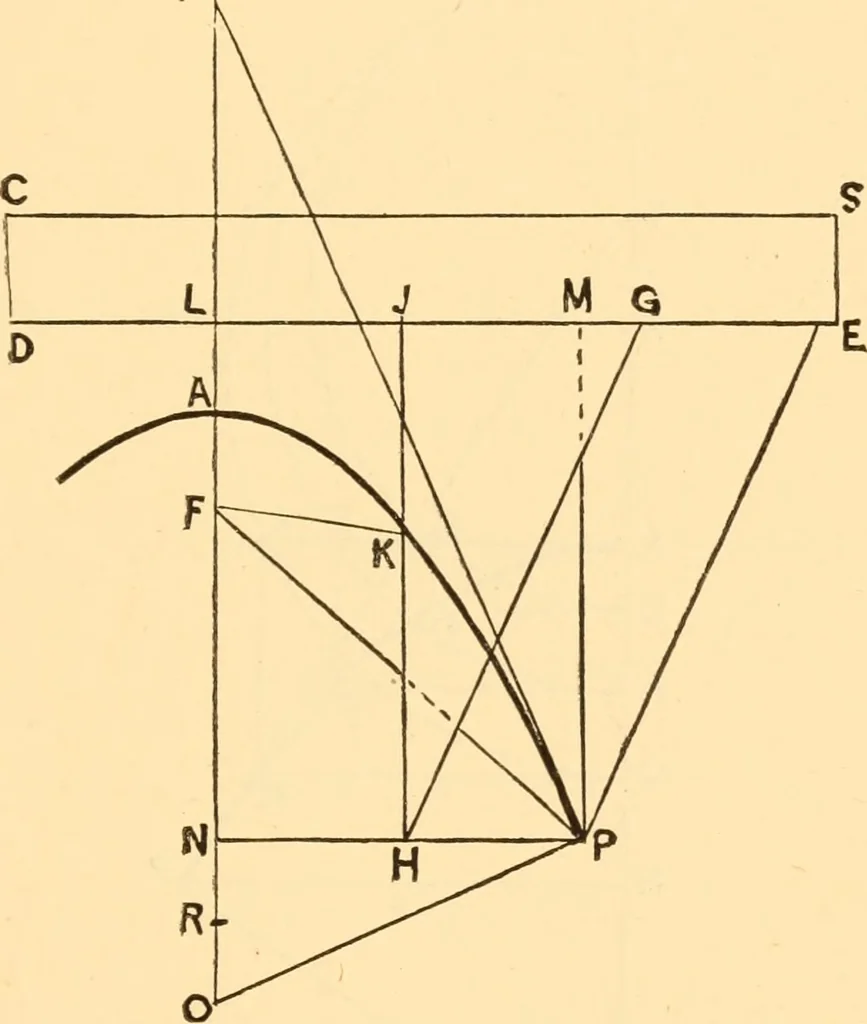

. 308) a given base, and NA a given height, set perpen- THE CURVE DESCRIBED MECHANICALLY. ;oi dicularly to the base, extend NA beyond A, and make A Tequal to NA ; join Zand P; from /^perpendicularly to TPdrawP6^; bisect ON\\\R\ make AL and y^/each equalX.O N R\ through Z, perpendicular to L O, draw… … Fig. 30S. y//coincident with the line MP, fasten to it a fine cord onthe edge PR, and extend it from P to F, the focus, and se-cure it to a pin fixed in F. The cord FP will equal theedge MP. To describe the curve set the triangle J G H atMPE, slide it gently along the ruler towards D, keeping…
