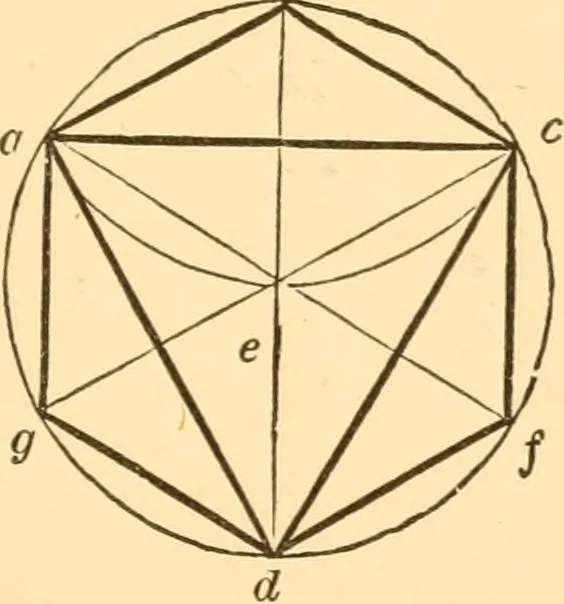

627.—Witliin a Given Circle, to In§eribe an EquilateralTriangle, Hexagon or Dodecagon.—Let abed (Fig. 380) bethe given circle. Draw the diameter bd\ upon b, with theradius of the given circle, describe the arc aec\ join a and r,also a and d, and c and d—and the triangle is completed.For the… … Fig. 380. hexagon is completed. The dodecagon may be formed bybisecting the sides of the hexagon. Each side of a regular hexagon is exactly equal to theradius of the circle that circumscribes the figure. For theradius is equal to a chord of an arc of 60 degrees; and, asevery circle is supposed to…
