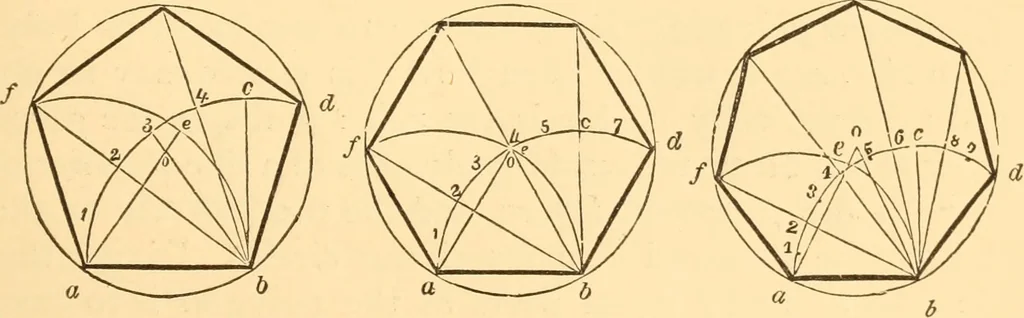

Fig. 383. Fig. 384. Fig. 385. upon ac (as at Fig: 384) mark the points d and /. Thismethod of locating the angles of a polygon is an approxima-tion sufficiently near for man)^ purposes; it is based uponthe like principle with the method of obtaining a right linenearly equal to a circle {Art. 524).… … Fig. 386. Fig. 387. Fig. 388 531.—Upon a Given Line to Bcscribe any RegularPolygon.—Let ab {Figs. 386, 387, and 388) be given lines,equal to a side of the required figure. From b draw ^<: atright angles to ^ <^; upon a and b, with a b for radius, describethe arcs acd and feb\ divide ac into…
