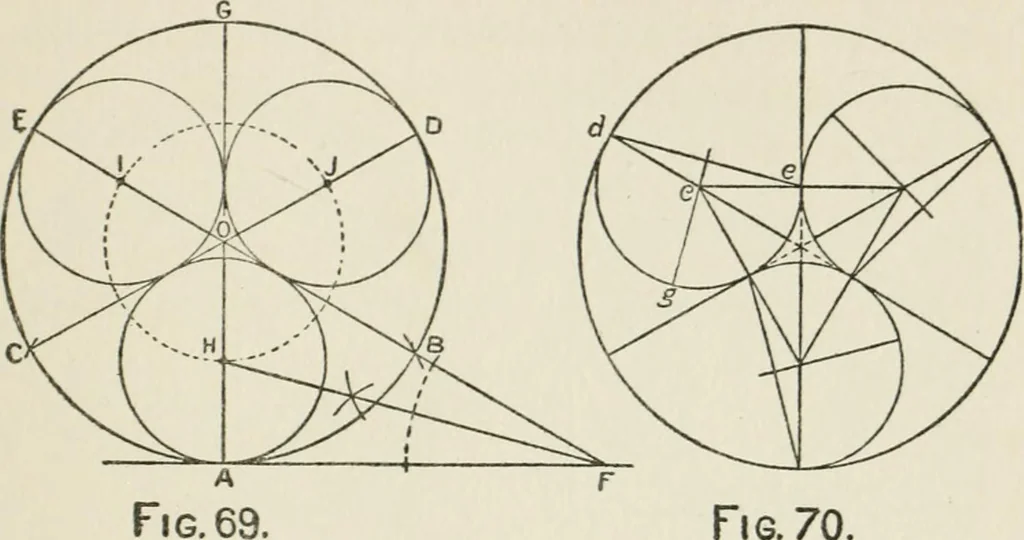

ight angles to it. From A, withradius 0 A, cut the circle in B and C, and thetangent in the point F, using B as a center.Bisect the angle O at F, and produce the bisectingline until it cuts A G in H. From O, with radiusOH, cut the lines DC and EB in I and J. FromH, I and J, with radius HA, draw the… … Fig. 70. three equal circles in a circle, join their centers,thus forming an equilateral triangle. From thecenter of the surrounding circle draw radii pass-ing through the angles of the tiiangle and cuttingthe circle in points; as d and two others. Drawed and bisect it byeg; then the centersfor the…
