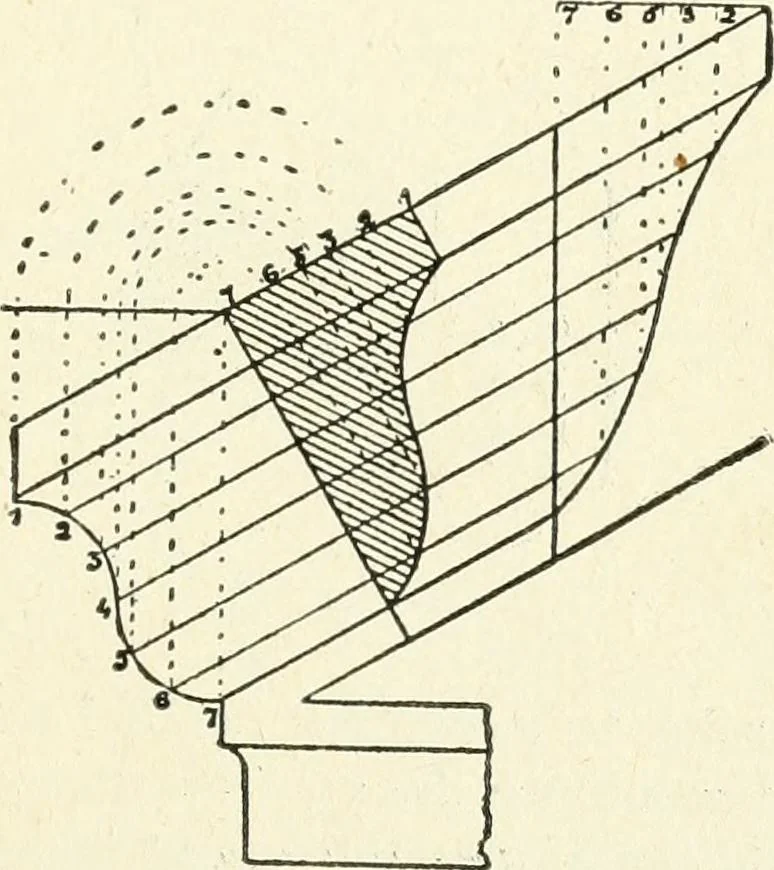

PRACTICAL SOLUTIONS 183 eqna] in length to a a, Fig. 48. Upon this line set offthe divisions as they occur on a a, noting that theirdirection is reversed in the two figures. Erect per-pendiculars from these points to intersect the previ-ously drawn horizontals, and through the intersectionstrace… … Fig. 50. ducing the inclined sides of the triangle, as shown bjthe dotted lines on Fig. 48, sufficiently to enable therequired depth to be drawn within it parallel to A B.One member has been enlarged to indicate the method,which should be clear without further explanation. Raking Mouldings. Fig. 50…
