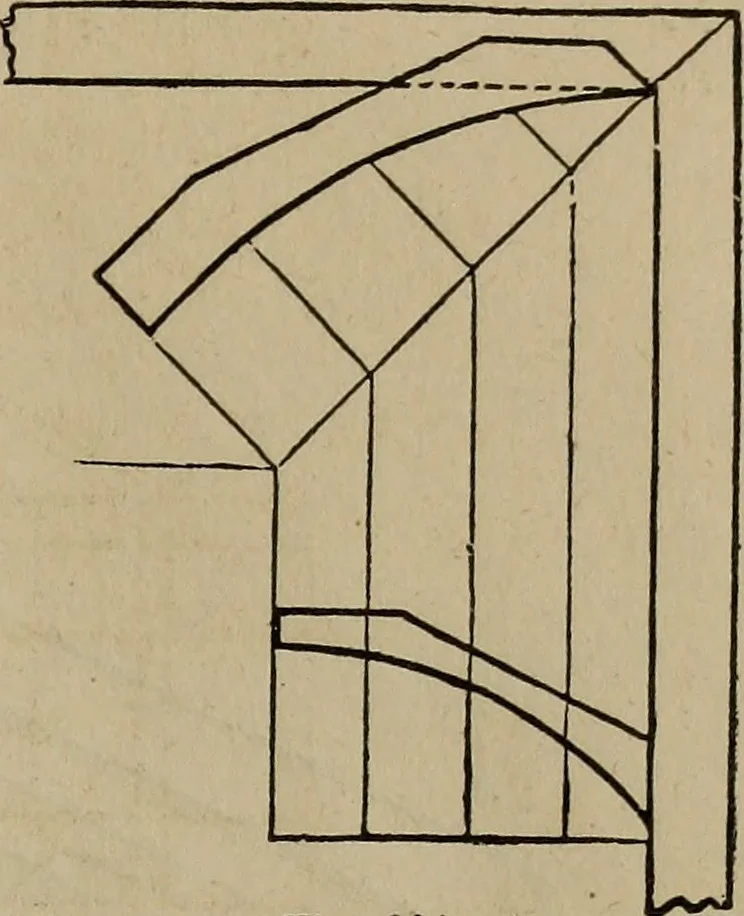

tioned according to a smaller given oneas well as to a larger ; but the method described in the previousarticle is much more simple for that purpose. 255.— To find the angle-bracket for a cornice. Let A, {Fig.203,) be the wall of the building, and B the given bracket, which,for the present purpose,… … Fig. 204. lei with the wall, / d^ draw the line, ah ; make e c equal a /,and through c, draw c &, parallel with e d ; join c? and 5, and fromthe several angular points in 5, draw ordinates to cut d 6 in 1, 2and 3; at those points erect lines perpendicular to d b ; from h,draw h gj parallel to/…
