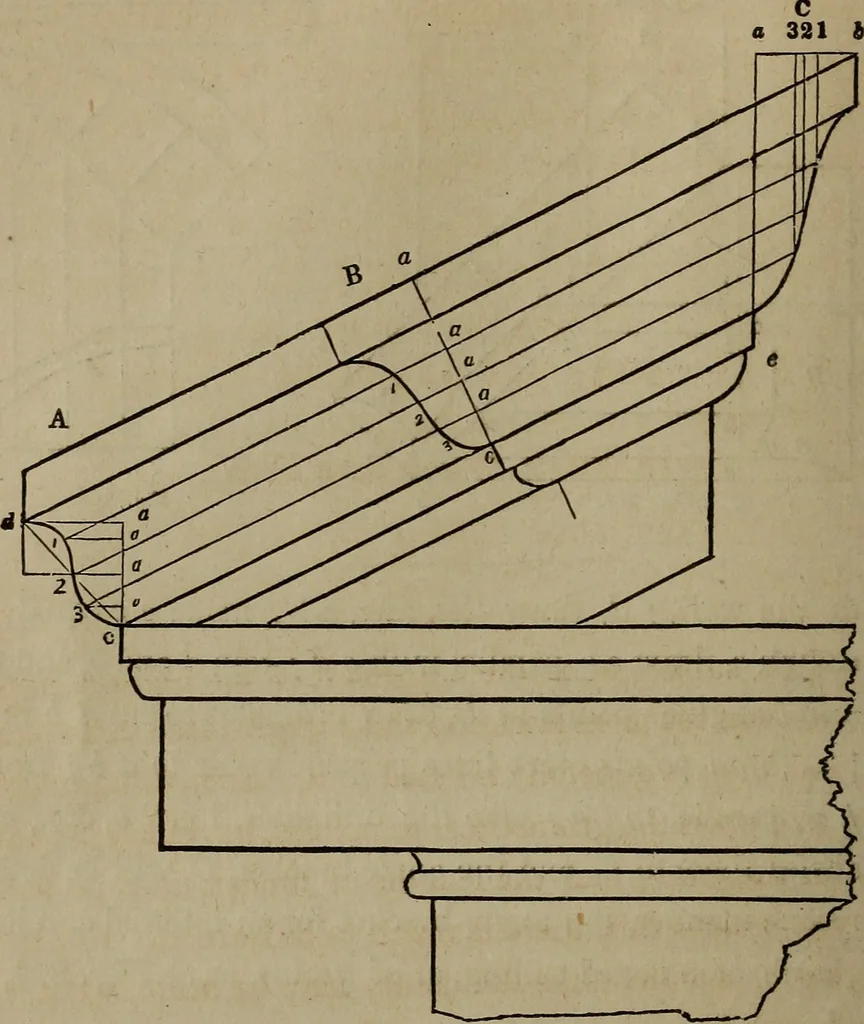

venient placeon the rake, as at B, draw a c, at right angles to Ah ; also, from6, draw the horizontal line, b a ; place the thickness, d a, of themoulding at A, from b to a, and from a, draw the perpendicularline, a e ; from the points, 1, 2, 3, at A, draw lines to C, parallelio Ah ; make a 1, a 2… … Fig 205. 3, at Cj drop perpendiculars to the corresponding ordinates from1. 2 and 3, at J./through the poirts of intersection, trace thecurve—this will be the proper form lor the return at the top. SECTION IV.—FRAMING. 257.—T)iis subject is, to the carpenter, of the highest impor-tance ; and…
