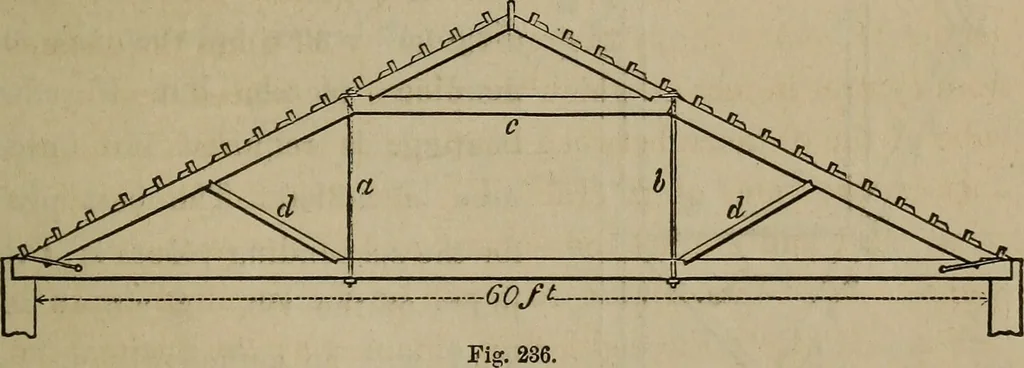

are iron rods, ee^ dd^ are braces, and c is a straining beam.In Fig. 238, purlins are located at PP, &c.; the inclined beamthat lies upon them is the jack-rafter; the post at the ridge isthe king post, the others are queen posts. In this design the tiebeam is increased in height along the…
