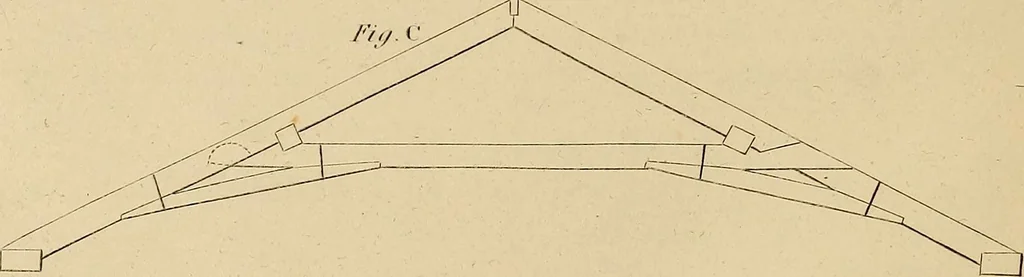

DESIGNS OF ROOFS. 65 PLATE 40. This contains the most simple construction of roofs. Fig. A is calculated for a small building; at one end of the collar beam is the Carpen-ters boast, what they term a dove-tail tenon; but I think rather a rule-joint, as it is workedout to a centre. This roof will do…
