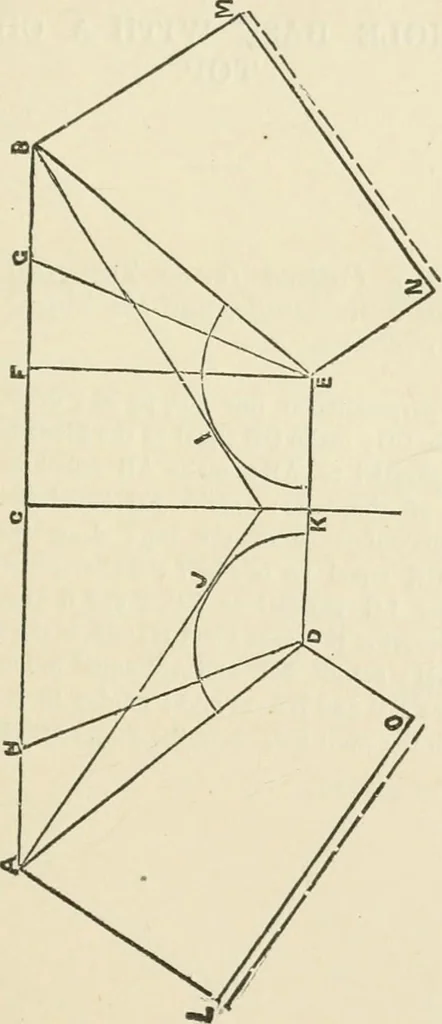

f the top ;draw the lines AD and BE ; make CG equal to one-half the short-est side of the base, D and E as centres, with a radii equal to one-half the diflference of the top and the shortest side of the base,as from G to F; describe the arcs J and I; draw the right anglelines JAL and IBM ; set off… … J4 PRACTICAL EULES RECTANGLE BASE WITH A CIRCULAIlTOP. To describe a Pattern for a Tapering Article, theMase to he a Rectangle^ and the Top a Circle, to hein Two Sections. Erect the perpendicular line DO, fig 33 ; draw the line AB atright angle to DC; make CE equal to the Slant height, and drawthe…
