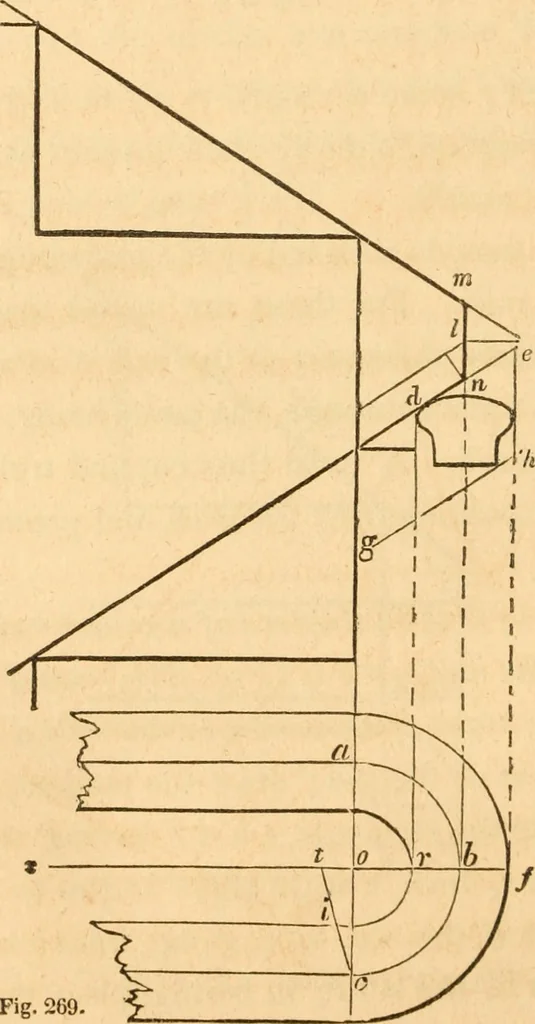

i-lu. -IS. bit in the gauge-mark at a. and bore in the direction, a c. To dothis easily, make chucks as represented in the figure, the bottomedge, g- h, being parallel to o c, and having a place sawed out, asef, to receive the rail. These being nailed to the bench, the railwill be held steadily in… … Fig. 269 STAIRS. 217 373.—To obtain, by the foregoing principles, the face-mouldfor the twists of a moulded rail upon platform stairs. In Fig.269, a b c is the plan of a line passing through the centre ofthe rail around the cylinder as before, and the lines aboveit are a vertical section of steps,…
