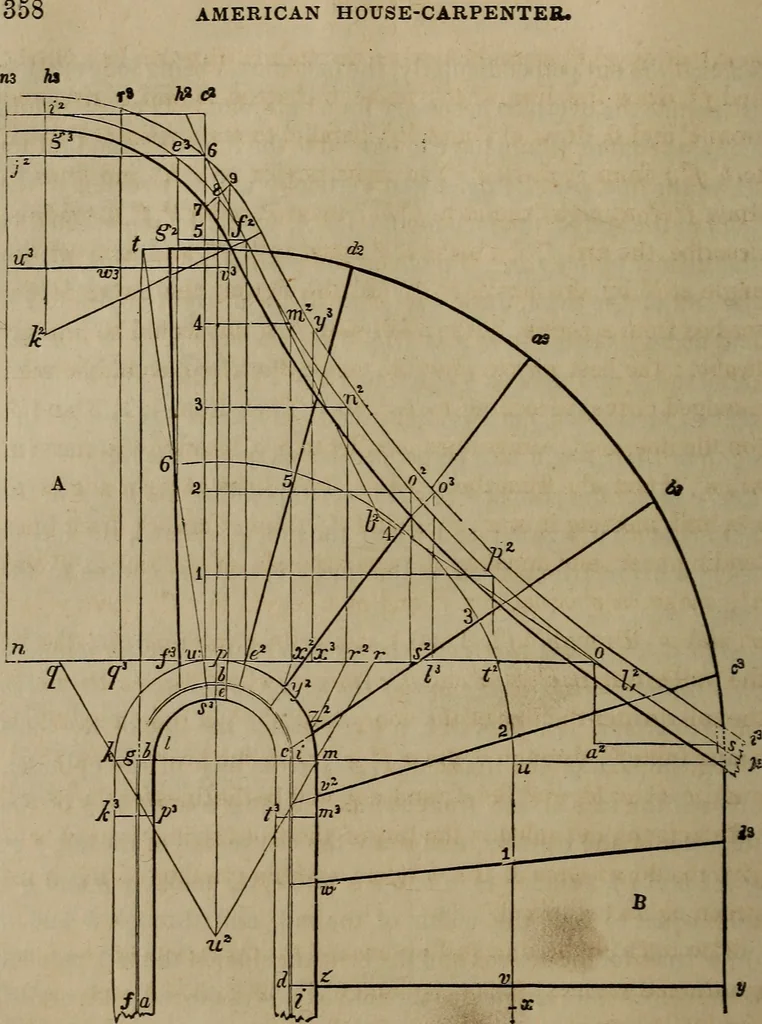

ual to the length of the steps, and i u equal to 18 inches, and de-scribe the arcs, s t and u 6, parallel to mp ; from t, draw t w^ tend-ing to the centre of the cylinder ; from 6, and on the line, ^ux, runoff the regular tread, as at 5, 4, 3. 2, 1 and v ; make u x equal tohalf the arc, u 6, and… … Fig. 814. from c^^ draw a^ s, parallel to 7i o, and equal to one tread; from sthrough 0, draw s U^. Then from w^ draw w c^, at right angles to n o, and set up, onthe line, w c, the same number of risers that the floor. A, is abovethe first winder, jB, as at 1, 2, 3, 4, 5 and 6; through 5, (on…
