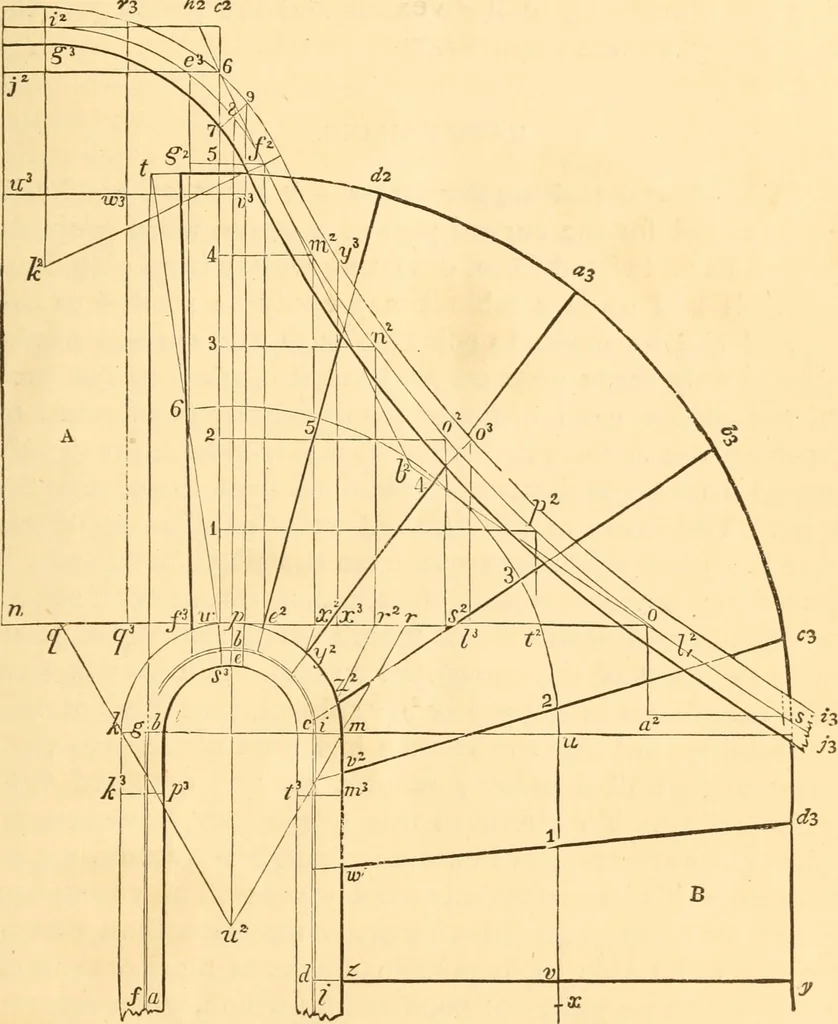

he mind, while that of the sound alone remains; they maythen be mistaken for a2, b 2, etc. This can be avoided in reading by givingthem a sound corresponding to their meaning, which is a second^ b secotid^ etc. MOULDS FOR QUARTER-CIRCLE STAIRS. 255 ing to Art. 521. Then from i, 2, 3, and 4 (on the… … Fig. 135. lines tending to it -, and meeting the convex side of the railin y^ and ^^; make ;;/ 7^- equal to r s^, and 7/1 w^ equal tort^; from J/-, -a v^^ and w, through 4, 3, 2, and i,draw linesmeeting the line of the wall-string in a^, d^, c^, and d^; from 256 STAIRS. ^^ where the centre-line of…
