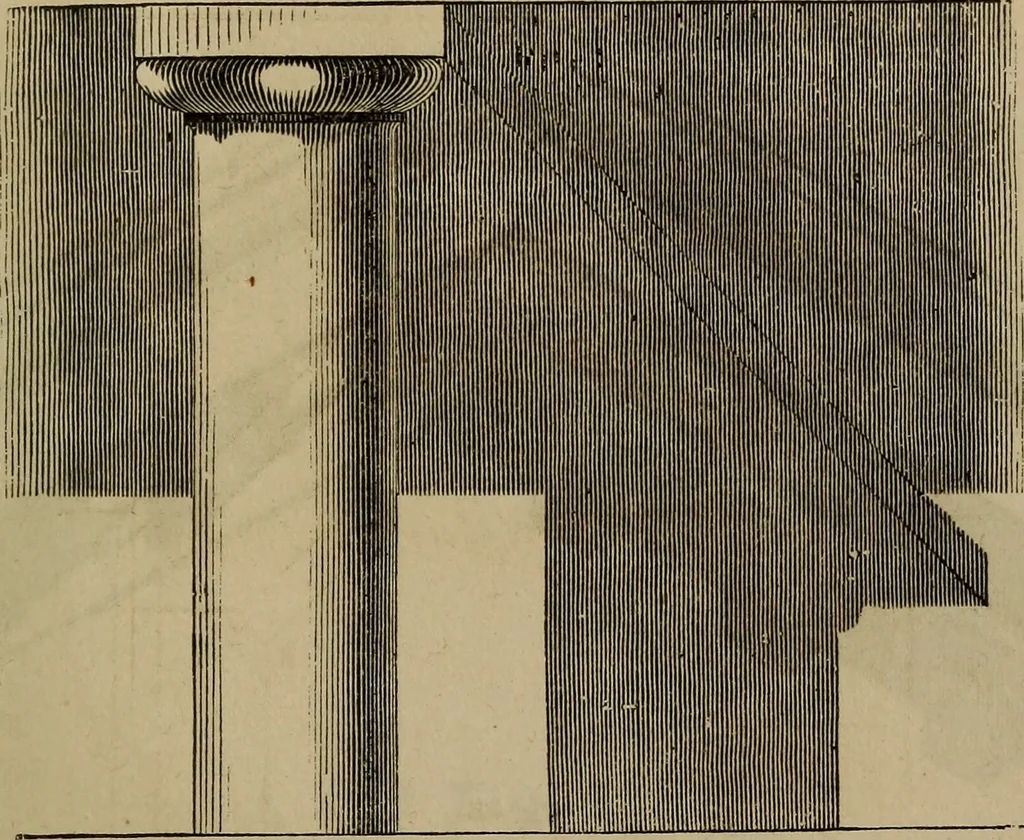

from a and &, {Fig. 362,) and find the point, c, as in tlieprevious examples; from d^ draw the ray, d e, and from e, thehorizontal hne, e f; tangical to the curve at g and A, draw therays, g j and h i, and from i and j, erect the perpendiculars, i Iand j k; from tti and n, draw the rays, m f… … Fig. 863. Fig. 363 is an example of the same kind as the last, with allthe shadows filled in, according to the lines obtained in the pre-ceding figure.
