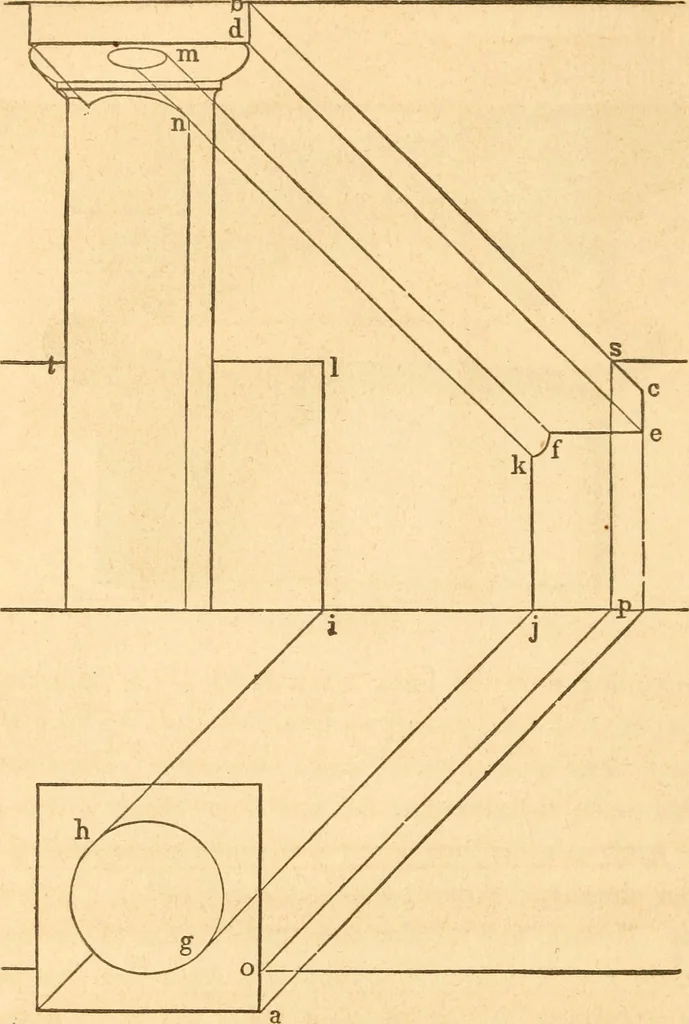

of thefigure, it will be seen that the same process is applied to eacli lineof section, and in that way the points, p, r, t, u, v, tv, x, as also1, 2, 3, &c., are successively found, and the lines of shadowtraced through them. Fig. 330 is an example of the same capital with all the… … Fig. 331. rays from a and h, {Fig. 331,) and find the point, c, as in tlieprevious examples; from d^ draw the ray, d e, and from e, thehorizontal line, e f; tangical to the curve at g and A, draw therays, g j and h z, and from i and j^ erect the perpendiculars, i Iand^ k; from m and n^ draw the…
