The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry (1852)

Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 254

An illustration from The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry, 1852, leaf 254

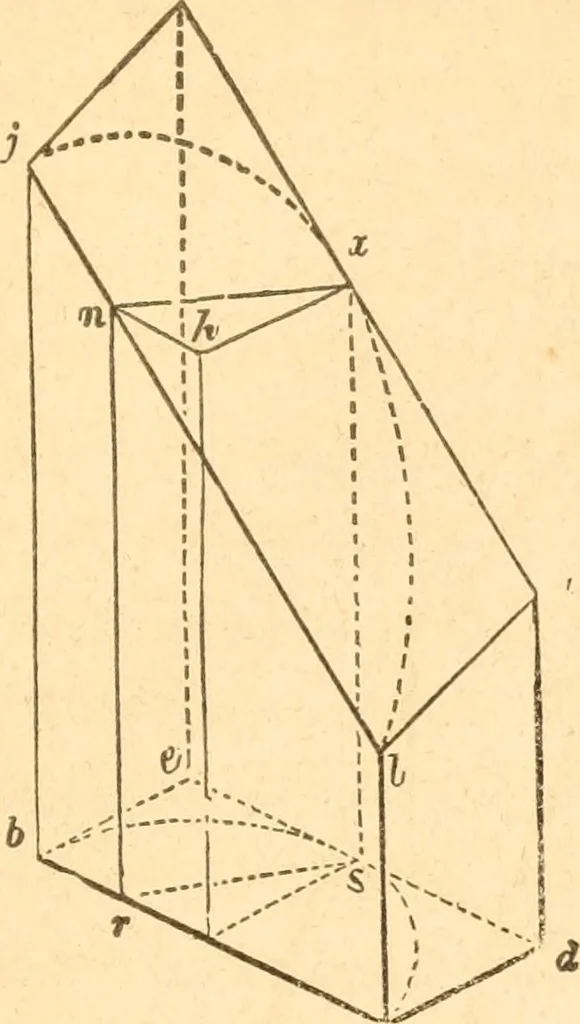

Fig. 285. in Fig. 286 obtuse, and in Fig. 287 acute. Upon the base, de-scribe the semi-circle, h s c ; from the centre, i, draw i s, at rightangles to 6 c ; from 5, draw 5 x, at right angles to e d, and from i,draw i h, at right angles to b c ; make i h equal to 5 x, and joinh and x; then, h and x…
