Hatfield, Robert Griffith, 1815-1879. [from old catalog] · New York & London, Wiley and Putnam · leaf 224

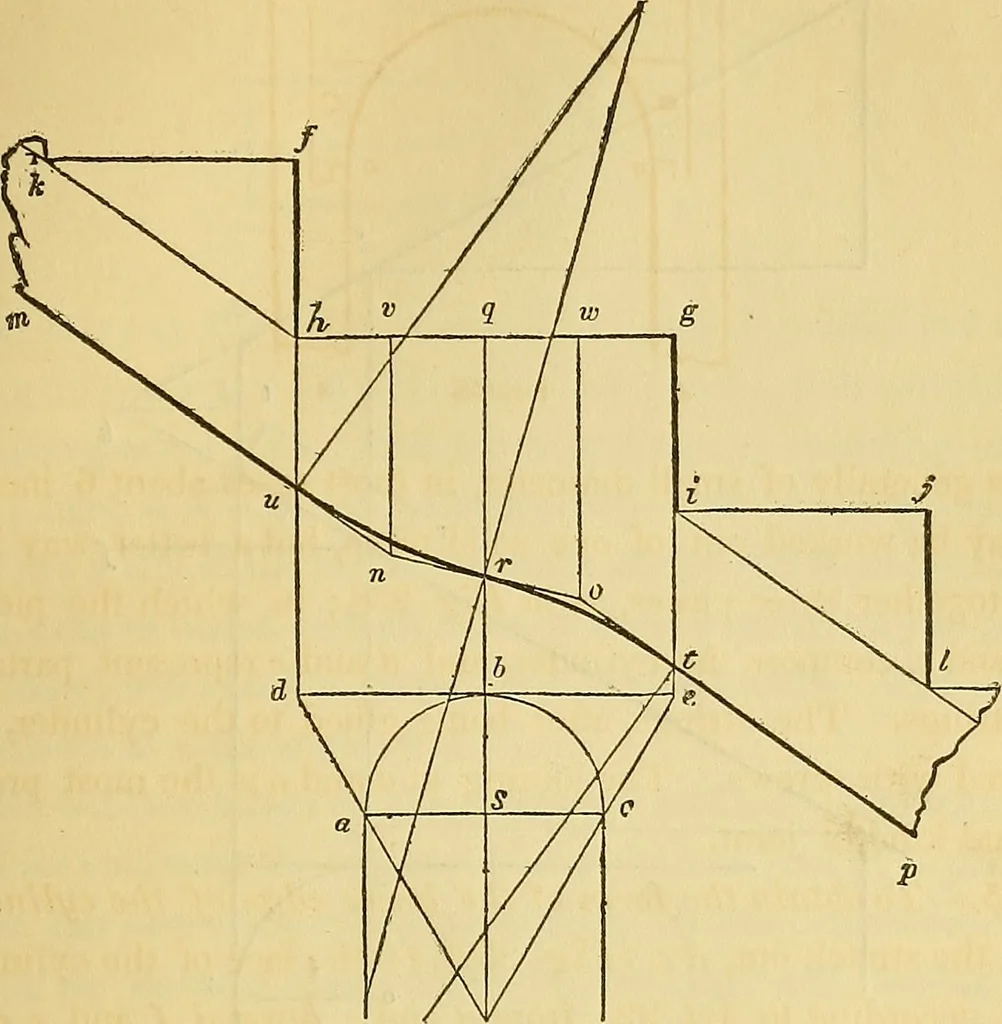

equal parts, as atV and w; from v and w, draw v n and w o, parallel tofd; join nand 0, cutting q s inr ; then the angles, u n r and rot, beingeased off according to Art. 89, will give the proper curve for thebottom edge of the cylinder. A centre may be found upon whichto describe these curves thus… … Fig. 259. 366.— To find the fOsition for the balusters. Place thecentre of the first baluster, (6. Fig. 260,) \ its diameter from theace of the riser, c c?, and i its diameter from the end of the step,e d ; and place the centre of the other baluster, a, half the treadfrom the centre of the first.…
Carpentry · Architecture
