The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 262

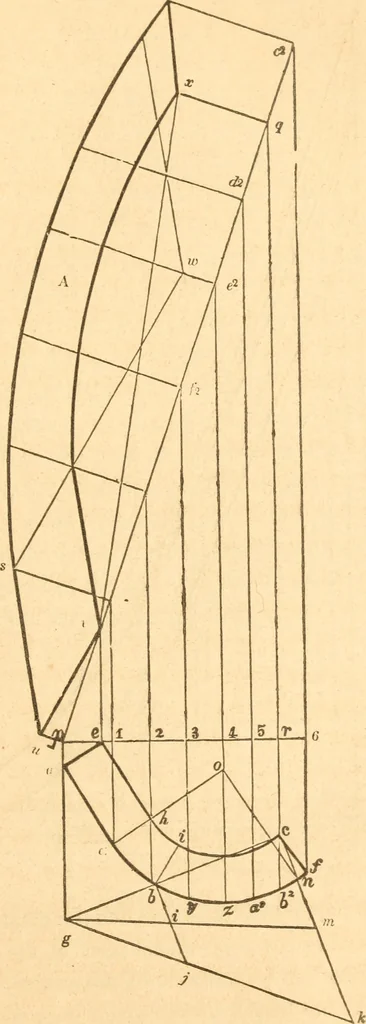

ight angles to g j^, and from c, draw c q. parallel to g p ;make r q equal to h g at Fig. 296 ; join p and q^ and proceed asin the previous examples to find the face-mould, A. The jointof the face-mould, u v, will be more accurately determined byfinding the projection of the centre of the plan, o,… … Fig. 295. 246 AMERICAN H0r5Ji?ARPENTEIl.
