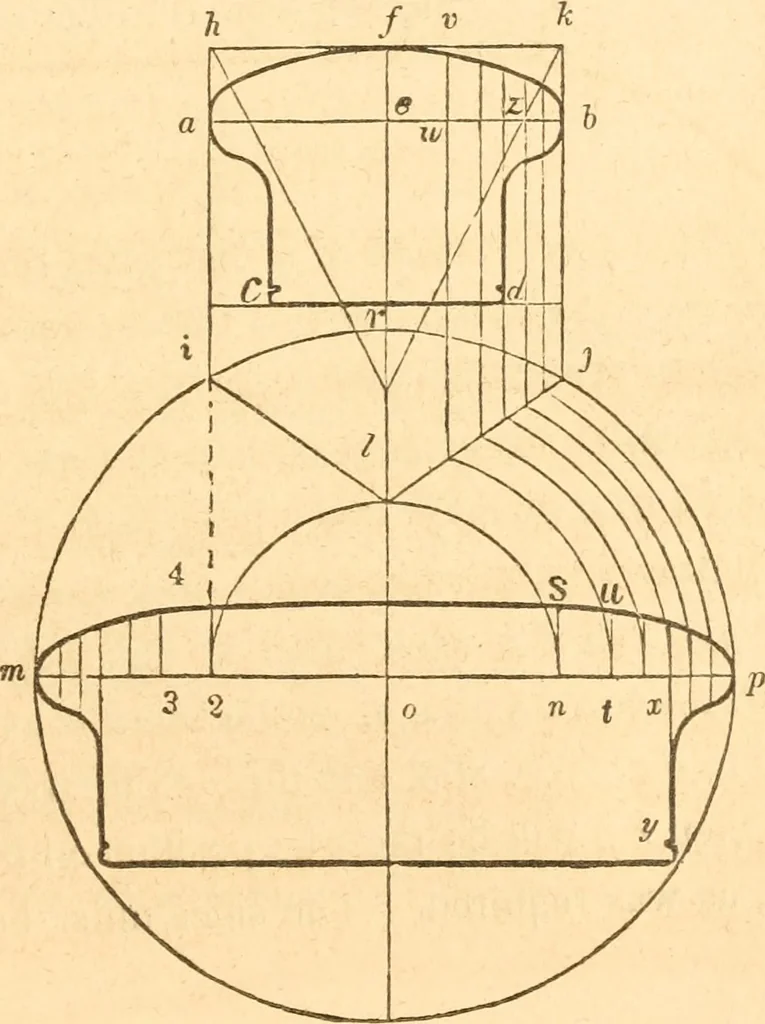

ding face-mouldsover winders, are intended for ?noulded rails. For roimd rails,the same process is to be followed with this difference: insteadof working from the sides of the rail, work from a centre-line.After finding the projection of that line upon the upper plane,describe circles upon it, as… … g Fig. 302. 254 AMERICAN HOUSE-CARPENTER 404.—To ascertain the form of the newel-cap from a sectionof the rail. Draw a b, {Fig. 302,) through the widest part ofthe given section, and parallel io c d; bisect a 6 in e, and througha, e and b, draw h i,fg, and kj, at right angles to a b; at a…
