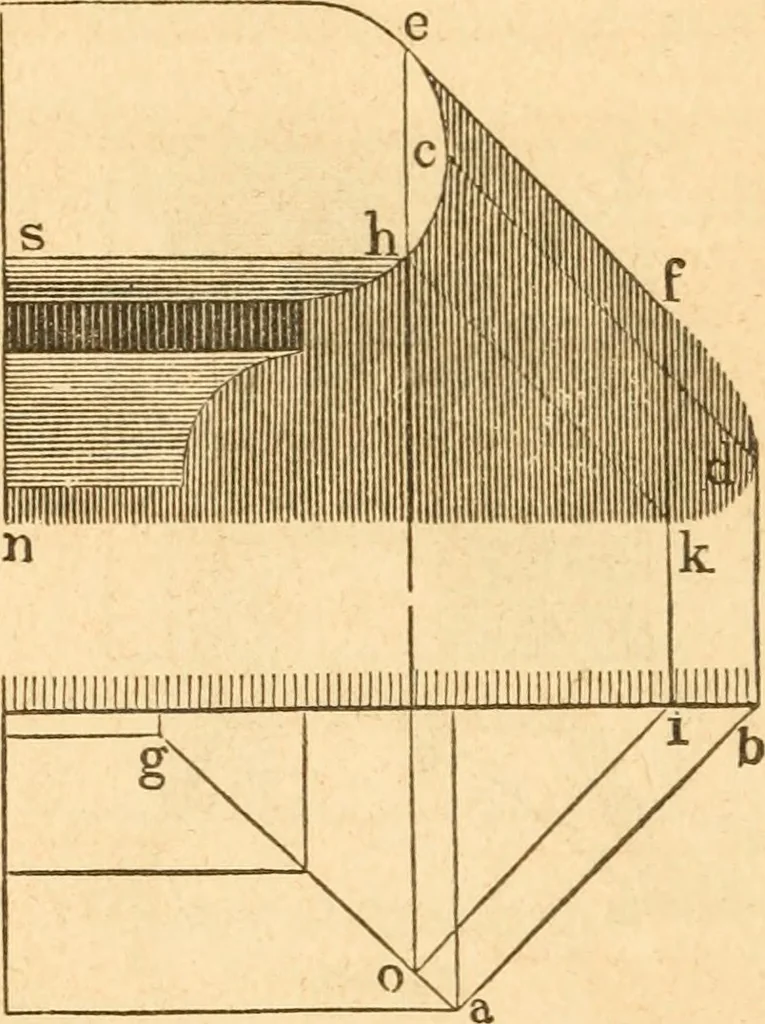

iiiiiiii!iii;i! Fig. 324. 422.— To find the shadow of a moulded window-lintel. Castrays from the projections, a, o, &c., in the plan, {Fig. 324,) andd, e, &c., in the elevation, and draw the usual perpendiculars in-tersecting the rays at ^, i, and i; these intersections connected 34 206… … Fig. 325. 423.— To find the shadow cast hy the nosing of a step. From«, {Fig. 325,) and its corresponding point, c, cast the rays, a hand c d, and from h, erect the perpendicular, h d; tangical to thecurve at e, cast the ray, e /, and from e, drop the perpendicular,e o, meeting the mitre-line, a g,…
