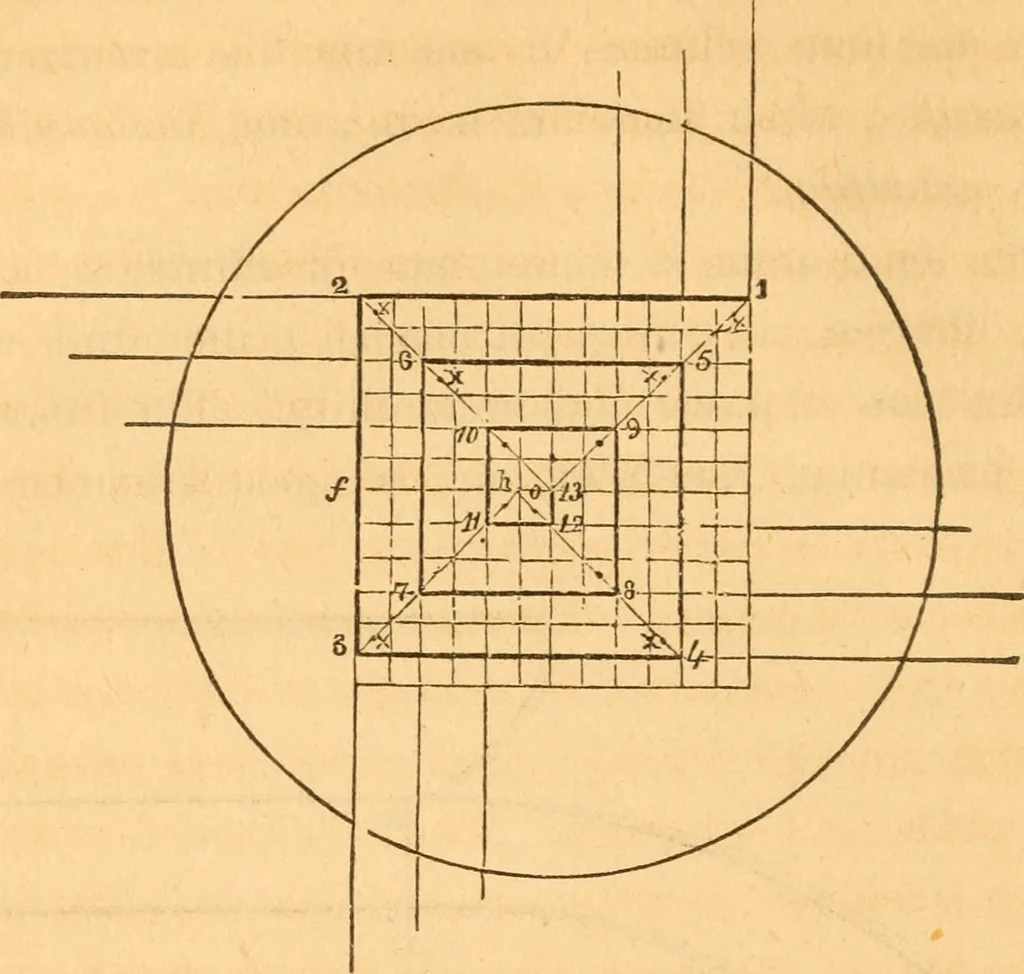

Fip. 112. SQ AMERICAN HOUSE-CARPENTER. … Fiff. 113. 195.— To describe the Ionic volute. Draw a perpendicularfrom a to 5, [Fig. 112,) and make a s equal to 20 min. or to f ofthe whole height, a c ; draw s 0, at right angles to s a, and equalto 11 min.; upon 0, with 2, min. for radius, describe the eye ofthe volute ; a!)wi;t 0, the centre…
