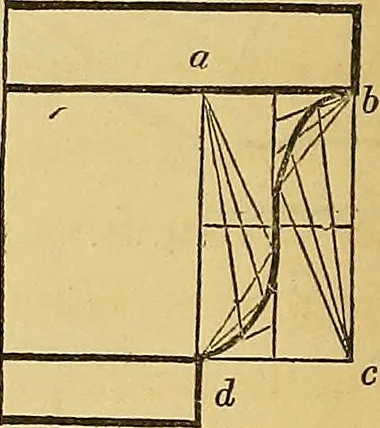

Fig. 141. Fig. 140. 235.— To describe the Grecian cavetto^ {Fig. 140 and 141,)having the height and projection given, see Art. 118. a \M1 IJ^ fi V c … Fi?. 142. Fig. 143. 236.— To describe the Grecian cyma-recta. When the pro-jection is more than the height, as at Fig. 142, make a h equalto the height, and divide abed into 4 equal parallelograms;then proceed as directed in note to Art. 118. When the projec-tion is less than the height, draw d a,…
