Hatfield, Robert Griffith, 1815-1879. [from old catalog] · New York & London, Wiley and Putnam · leaf 261

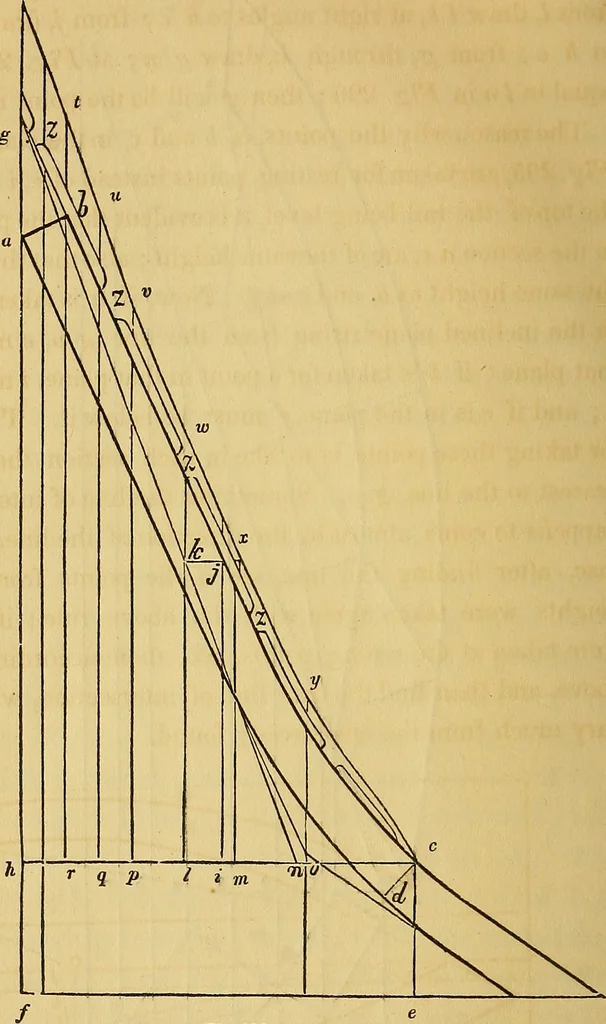

Fig. 295. AMERICAN HOUSE-OARPENTER. … Fig. 296. The object of drawing these lines is to find the point, g, and thatcan be done by taking any proportional parts of the lines given,as well as by taking the whole lines. For instance, supposing ck and b j to be the full length of the given lines, bisect one in iand the other in m; then a…
Carpentry · Architecture
