American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)

Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 131

An illustration from American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions, 1914, leaf 131

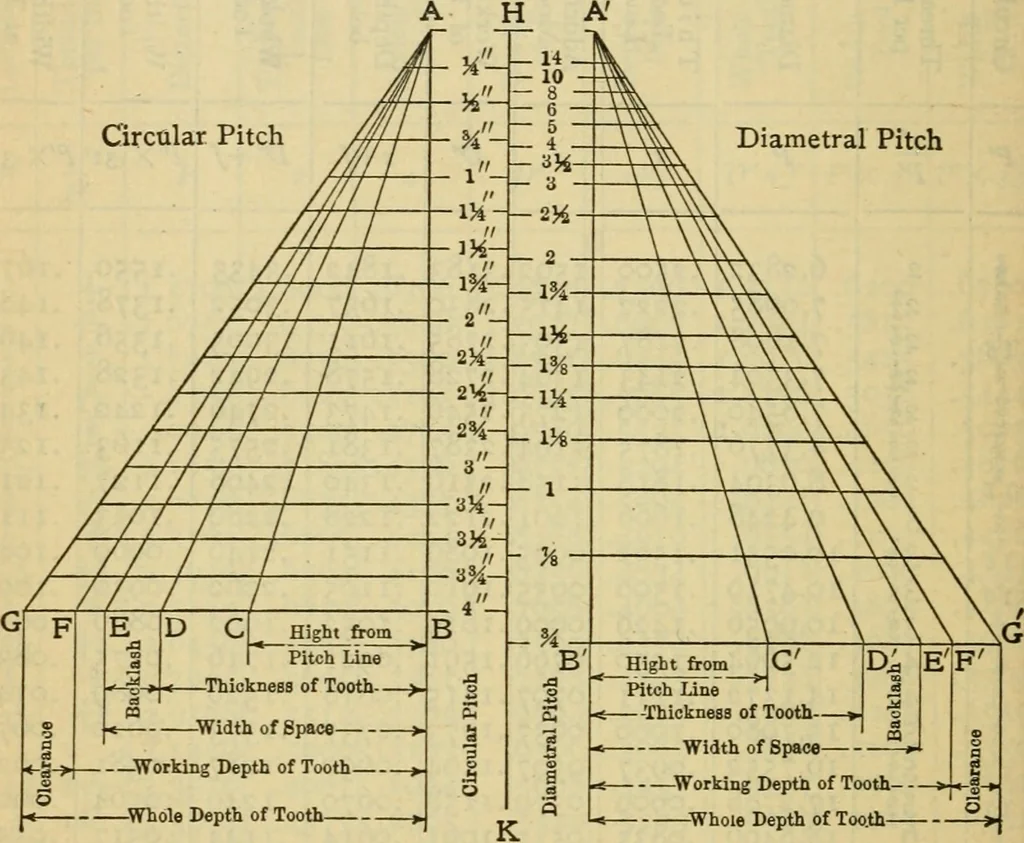

ference between the figures for 20 and 22 pitch. Thesame can be done for circular pitch except that we multiply insteadof divide. I02 GEARING DIAGRAM FOR CAST-GEAR TEETH The accompanying diagram (Fig. 2) for laying out teeth for castgears will be found useful by the machinist, patternmaker and… … LLlL V 2 J.I,I,I,III,1,1,1,1,1,J,I, ,1,1.1,1,1,1,1,1,1
