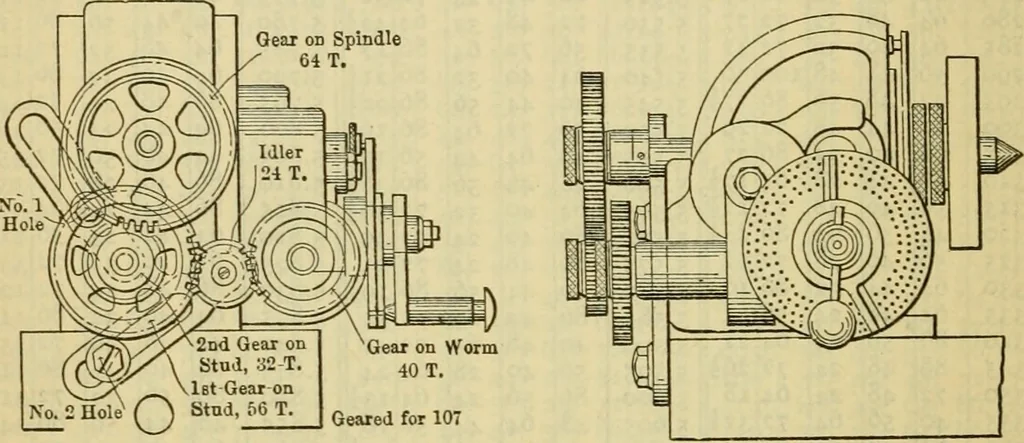

As indicated by the diagrammatic sketchFig. 2, the worm wheel A is secured to the main spindle of the spiralhead and rotated by means of the worm shaft and single-threadedworm B. The index plate (having rows of equally spaced holes)remains stationary during the dividing operation, and is fitted… … FiG. I. — BrowTi & Sharpe Dividing Head Arranged forDifferential Indexing dard ratio between the worm B and the worm wheel A is i: 40; andto find the movement of the index crank for any required division,the following formula is employed: The movement of the index crank = ^ where N is the…
