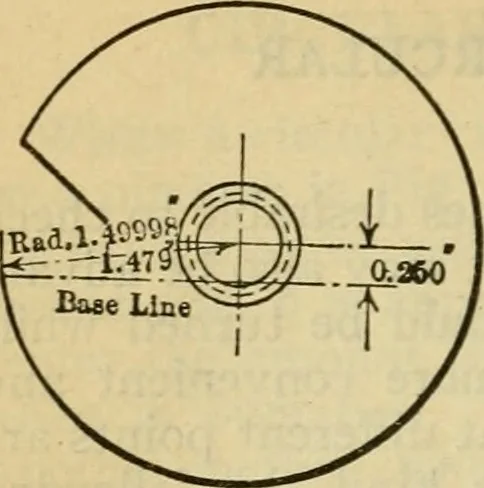

n steps of 0.001 inch for the capacity ofthe machines. A difference of a fractional part of a thousandth canbe added to the radius if the step is a part of a thousandth over thebase-line figures, which are given in even thousandths. For illus-tration: Say the base-line figure is 1.4765 inches. In… … Table i. — Dimensions of Cutters forB. & S. Automatic Screw Machines Mach.No. Approx.Diam. Max.Radius Max.Base Line Distance Aboveor Below Center 2 0 00 % 1.499981.124740.87497 1.4791.1090.866 0.250 0.1875 0.125 Fig. 14 Table 2, — For Finding Diameters of Circular Forming ToolsFOR Brown &…
Machine-shop practice
