American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)
Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 647

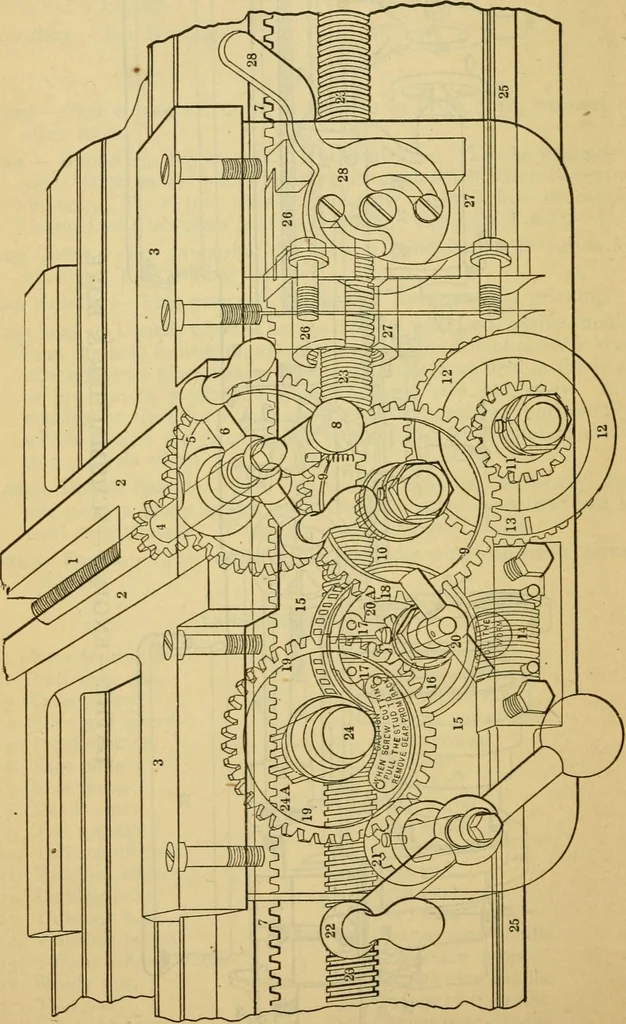

6i8 LATHE APRON … LATHE, SPINNING 619 Lathe Apron, Reed — Parts of 1. Cross-feed screw. 16. Clutch ring. 2. Cross-slides. 17, Clutch levers. 3. Wing of saddle. 18. Pinion. 4. Cross-feed pinion. 19. Gear in train. 5. Cross-feed gear. 20. Feed-clutct handle. 6. Cross-feed handle. 20A. Clutch spreader. 7. Rack. 21.…Machine-shop practice
