American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)

Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 652

An illustration from American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions, 1914, leaf 652

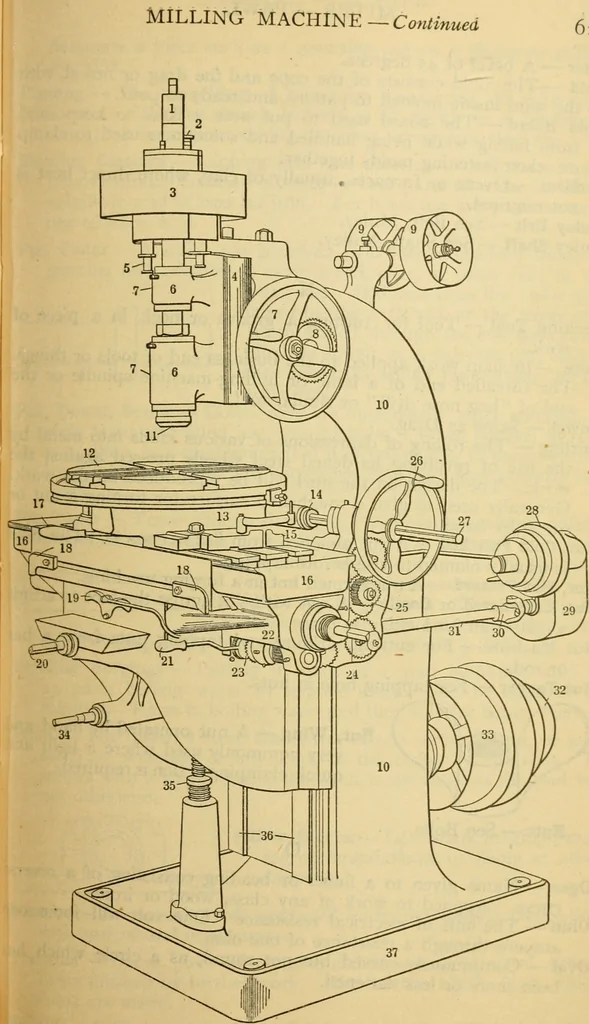

ed-trip dogs, right and left. 19. Feed-trip plate. 20. Cross-feed screw. 21. Feed-clutch lever. 22. Carriage. 23. Feed clutch. 24. Table-feed screw. 25. Rotary attachment feed gears. 26. Rotary attachment hand wheel. 27. Rotary attachment feed rod. 28. Feed-driving cone. 29. Feed bracket. 30.… … MILLING MACHINE — VERTICAL — BECKER 624 MITER —PAWL Miter — A bevel of 45 degrees. Mold — The mold consists of the cope and the drag or nowel, with the sand inside molded to pattern and ready to pour.Mold Board — The board used to put over a flask to keep sand from falling when being handled and…
