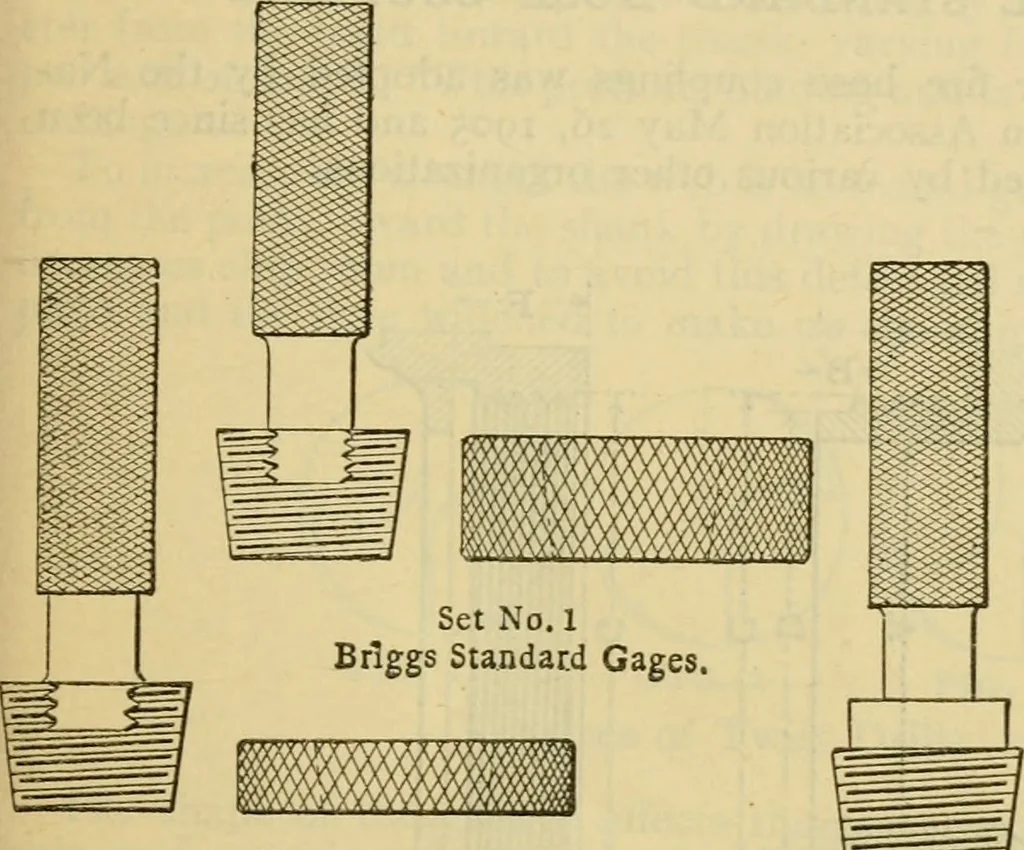

oreach size of pipe, and these are illustrated in Fig. 3, Set No. i con-sists of a ring and plug conforming in all dimensions to the Briggsstandard, and is known as the standard reference set. The plugscrews into the ring wnth faces flush — as indicated by the positionof the two gages. The flat… … £>iT«XAW:xWA\WxW;«-.R3! Set No. 2 ^^=^~=^-- Set No. 3 Working Allowance Gages. Inspection Allowance Gages. Fig. 3. — Briggs Pipe Thread Gages Set No. 2 — the working allowance set — consists of the plugalready described and a ring whose thickness is equal to the standardring less the allowance…
