The art of weaving, by hand and by power, with an introductory account of its rise and progress in ancient and modern times (1844)
Gilroy, Clinton G · New York, Baldwin · leaf 353

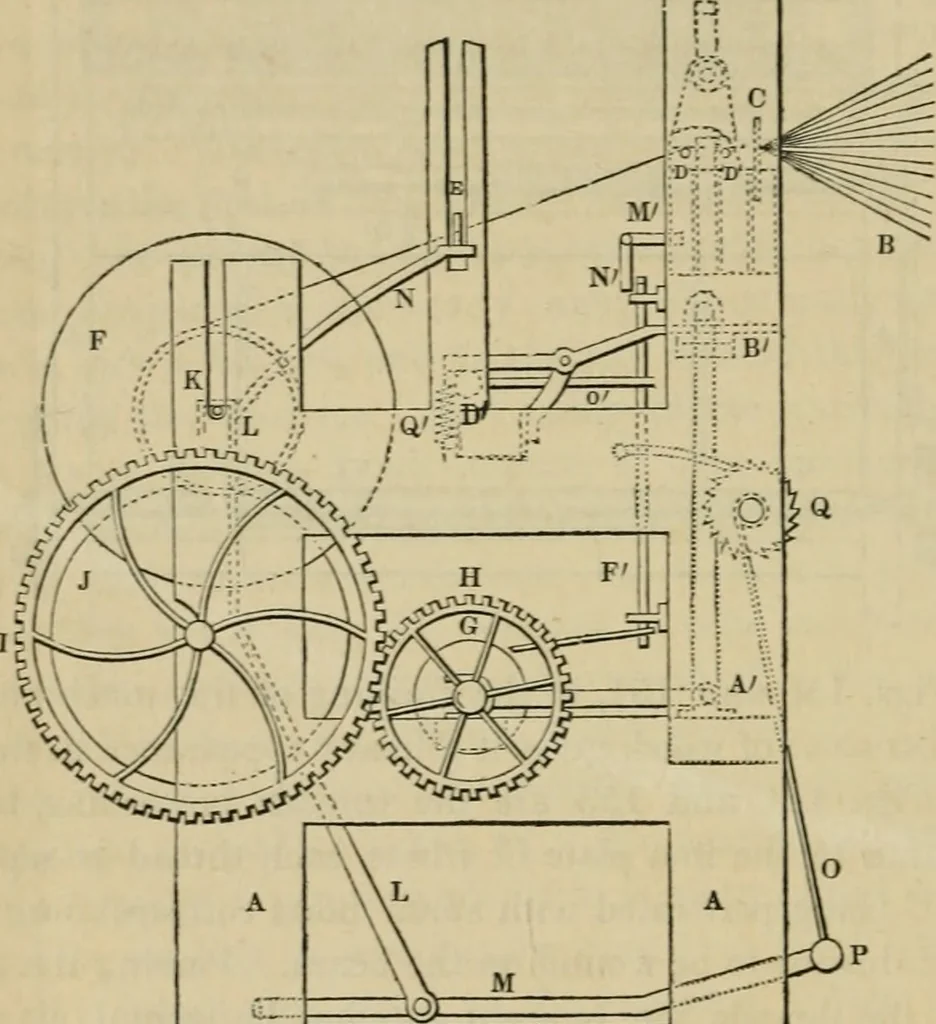

accordingly.The axis of the yarn beam rests on two slots of the framing at K,and is pressed down upon the drum J, by the stirrup L L, which isalso weighted down by the cross lever M. From the top of the 334 THE ART OF WEAVIXG. stiiTup L, an arm N extends to the guide reed E. so that as theyarn… … the yarn beam: O, Fig. 151, is a strap attached to the weight P,and which winds round a small shaft, on the end of w^hich theratchet wheel Q, is made fast. When the beam is sufficiently full,the strap O is wound up by means of a wrench attached to theratchet wheel, which thereby lifts the weight P,…
