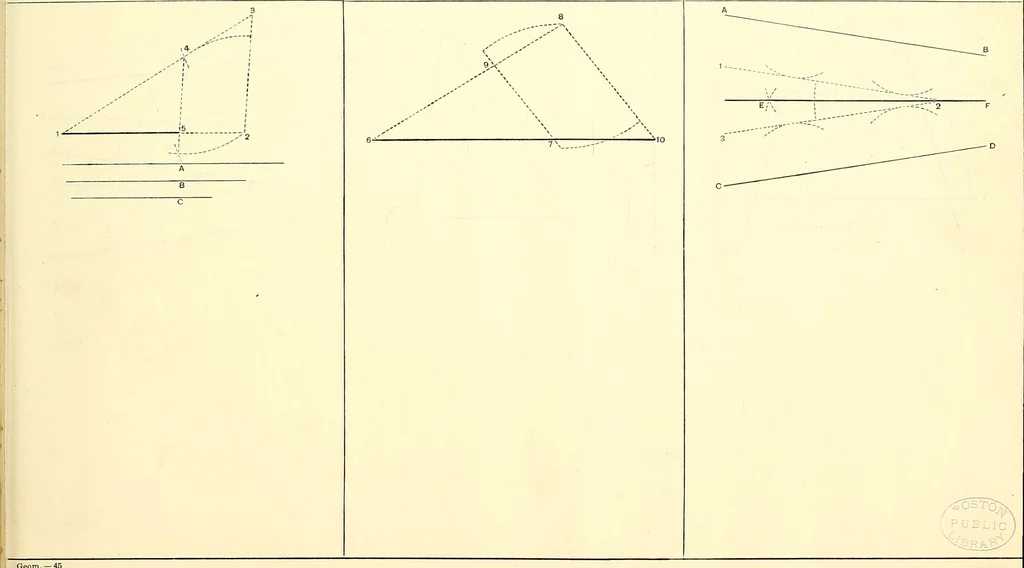

equal to C on the longer line 1 3, and from 4 draw a line 4_ 5 parallel tfeo 2 3, to cut 1 2 in 5; then 1 5 will be the fourth proportional less. Prob. 101.— To find a fourth proportional greater to three givenlines A, B, and C. When the fourth proportional is to be greater, draw 6 7 equal toB and… … Prob. 102.— To bisect the angle formed by two converging lines,when the lines do not meet. Draw the line 1 2 parallel to AB; draw the line 3 2 parallel toC D, and at the same distance from C D that 1 2 is from A B.Bisect the angle 1 2 3, and the bisecting line E F will also bisectthe angle formed…
