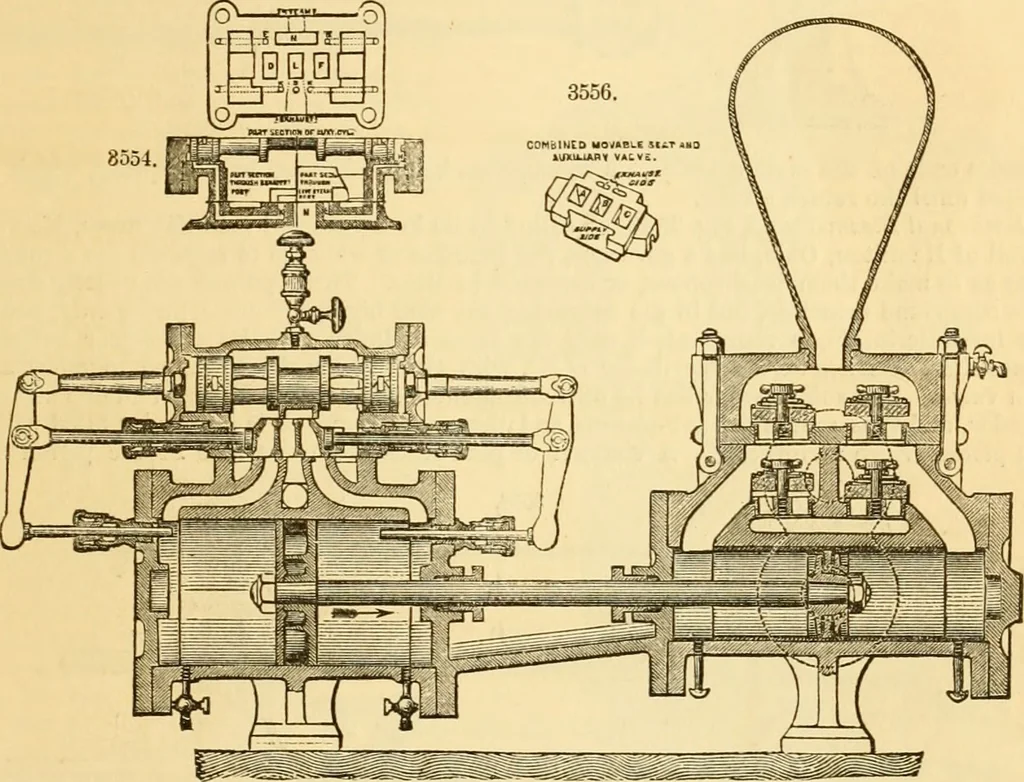

ts DLF lead to the main cylinder. The ports E Eadmit steam to the auxiliary cylinders,and their course is shown in section on the right-hand side of Fig. 3554 ; they are opened and closedalternately by the auxiliary valve, the under side of which is shown in Fig. 3556. Between the twoauxiliary… … shown in the section on the left-hand side of Fig. 3554 ; they are put in communication with the portB (shown in Fig. 3555 in the centre between them), which leads to the main exhaust-port, by meansof a B-valve, cast in one piece with the auxiliary valve, as seen in Fig. 3556. The ports ABC arethe…
