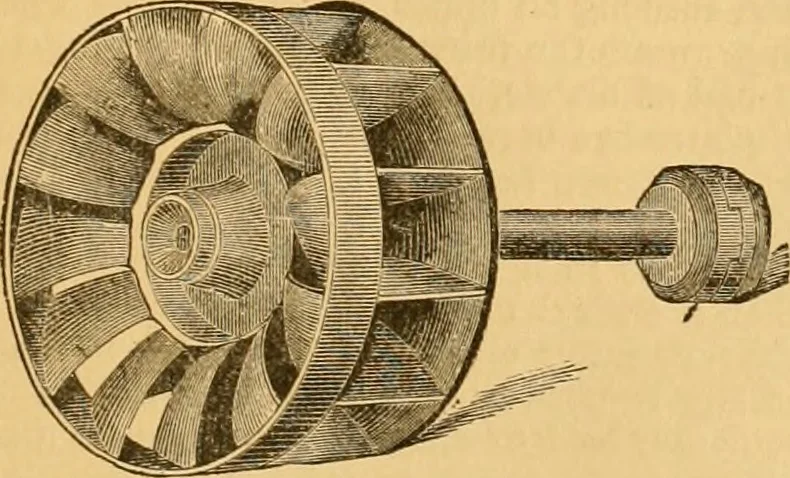

19.23 69.6450.08 AlcotVs Turbine, manufactured by Messrs. T. C. Alcott & Son of Mt. Holly, N. J., is representedin Figs. 4261, 4262, and 4263. Fig. 4261 represents the wheel out of the case; Fig. 4262 is a ver-tical section; and Fig. 4263 shows the outer case andcylinder, with the bridge-tree… … case; C is that portion of the chute comprised in theregister-gate; D is the pinion which works into a seg-ment upon the register-gate for the purpose of openingor closing the same. The arrows indicate the course ofthe water through the chutes or buckets of the wheel.
