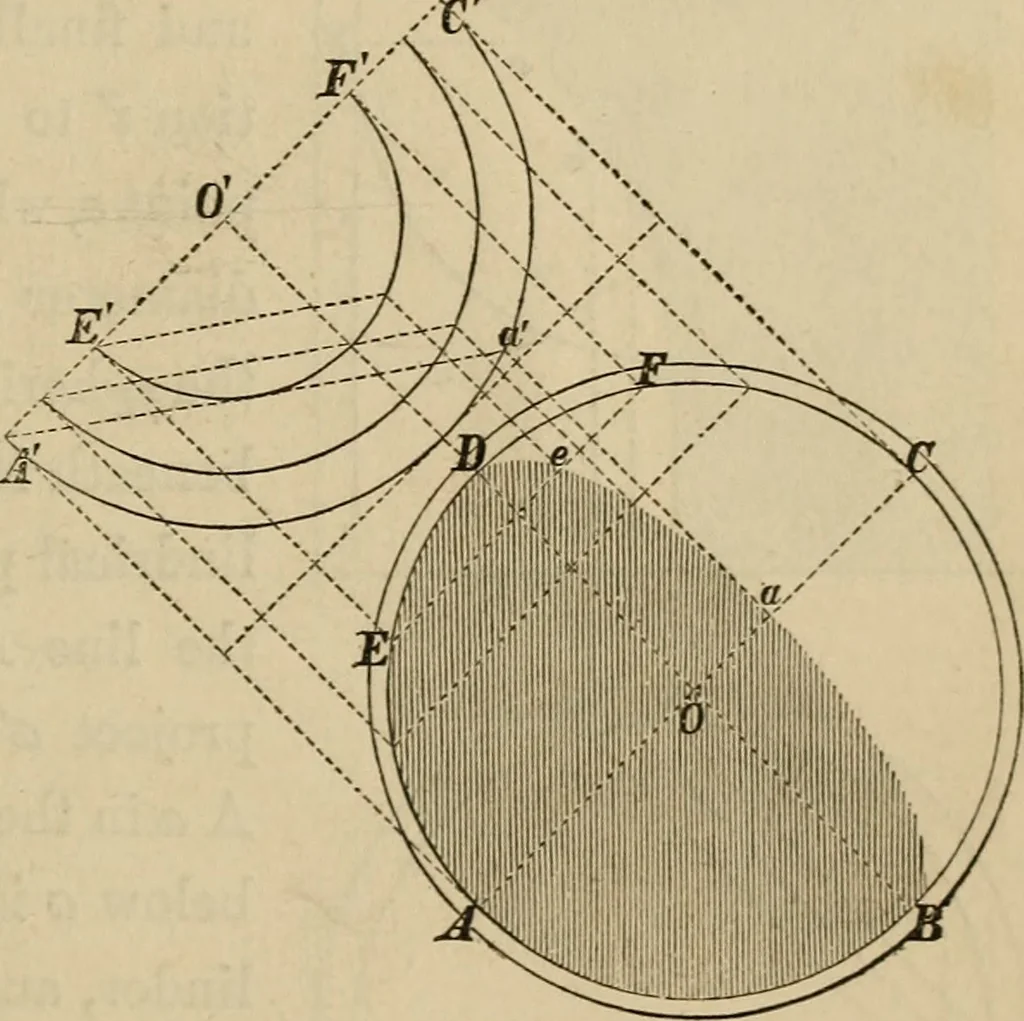

ying down in the same way semicircles E F corresponding to them,and drawing through E^ lines parallel to o m^, and projecting their intersec-tion with their semicircles to the corresponding sections E F on the plan, theremaining points in the curve sought may be obtained. But as this cmweis an… … Fig. 7. 321- SHADING AND SHADOWS. There will now be no difficulty in constructing the cast shadow in theinterior of a concave surface (fig. 8), formed by the combination of a hollowsemi-cylinder and a quadrant of a hollow sphere, called a niche, as weknow the mode of tracing the shadows upon each…
