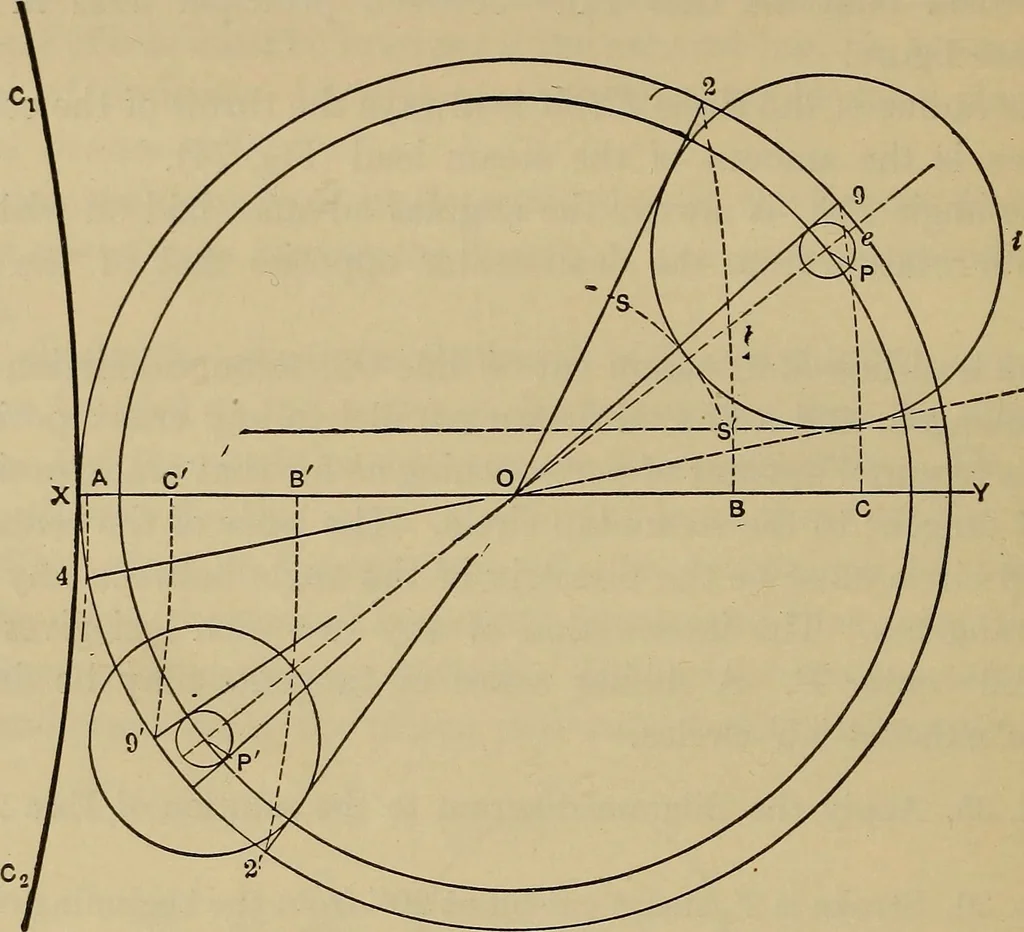

stroke; stroke 18; steam admission commences onhead end when the piston is 1/4 from the end of its stroke;exhaust opens at 9/10 stroke on both ends; ratio of connecting-rod to crank = 5; initial steam-pressure 60 pounds absolute; backpressure 15 pounds absolute; clearance on each end 10%.… … Fig. 75. CiXC2; lay off cut-off points B and # and find crank positions02 and 02; lay off XA = l/4 and obtain 04 crank position atsteam admission and prolong, thus obtain 03, a tangent to the
