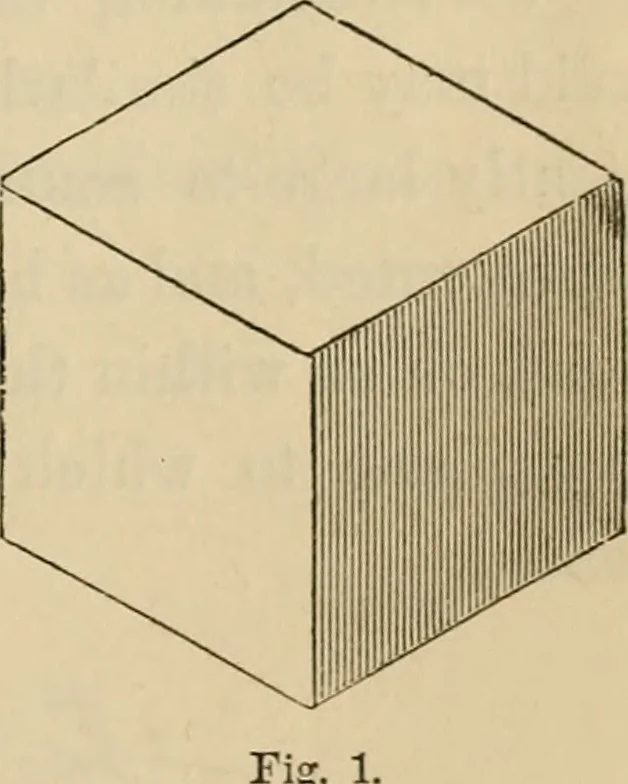

, and the distance of the horizon above theground line at about one-third the height of the picture. Linear perspective is more adapted to the representation of edifices,bridges, interiors, &c., than to that of machinery; it belongs, therefore,rather to the architect than to the engineer or the… … Peofessor Faeish, of Cambridge, has given the term Isometrical Per-spective to a particular projection which represents a cube, as in fig. 1.The words imply that the measure of the representations of the linesforming the sides of each face are equal. The principle of isometric representation…
