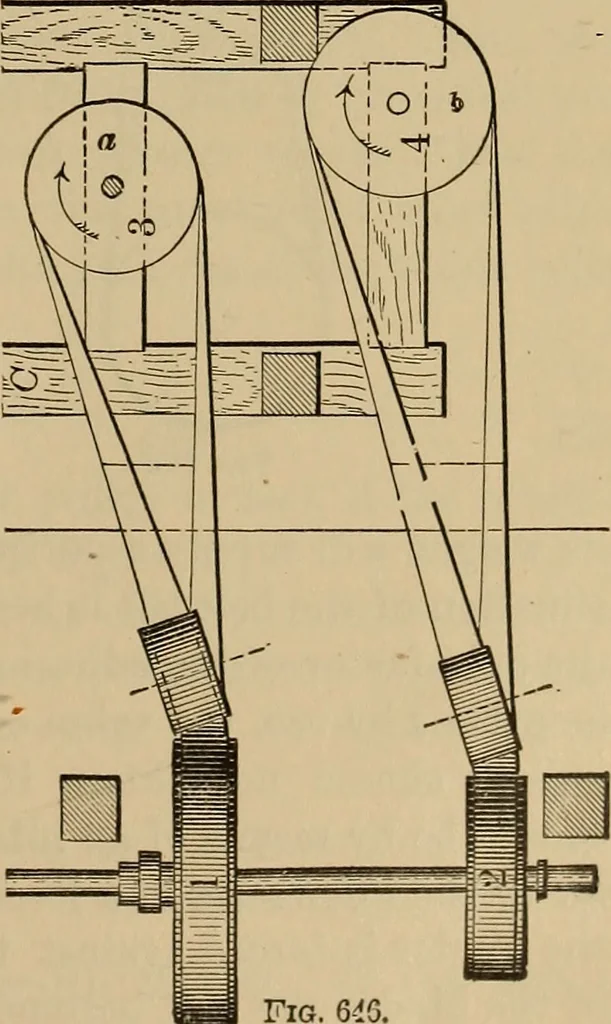

diameter of the largest pul-ley. Guide pulleys are very useful in belt trans-mission for shafts at varied angles, and theproper direction is obtained when each guidepulley is placed at the point of departure ofits plane with that of the next following pul-ley. Fig. 646 is an arrangement adopted… … Fig. 646. 290 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. plan of another arrangement of pulleys and guide-pulleys\ ah is the intersec-tion of the middle plane of the principal pulleys. Select any two points a andb on this line, and draw tangents ac, b d^ to the principal pulleys. Then c ac y
