Worthen, William Ezra, 1819-1897, [from old catalog] ed · New York, Appleton · leaf 369

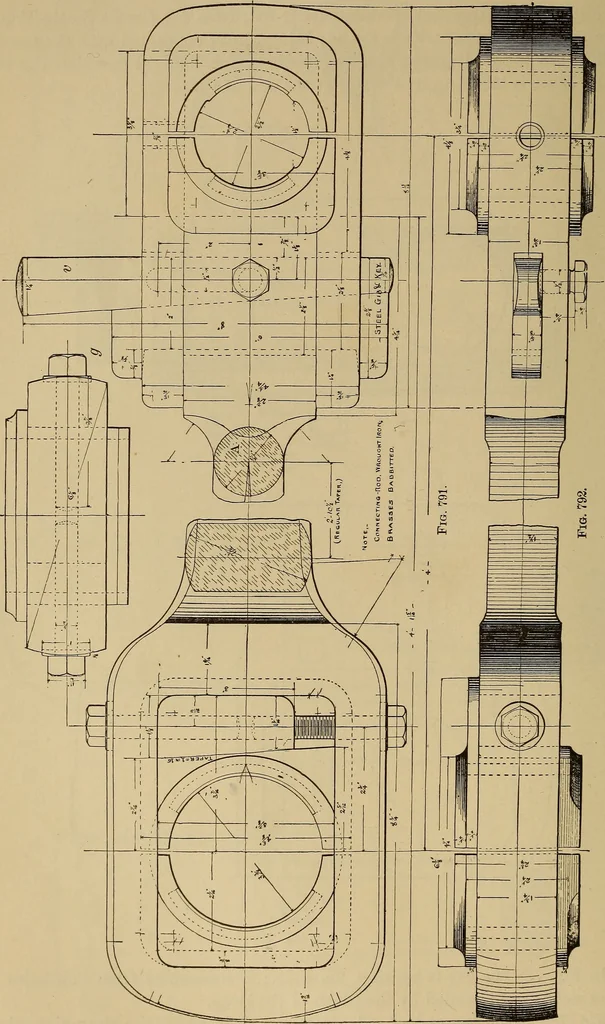

In Fig. 788 the key is between the bolts; the weakness from bolt-holes orcotter-slot is compensated by the width of the strap. Fig. 789 is the box-end of a locomotive-rod, in which the strap gives placeto a box forged on the end of the connecting-rod. 352 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. … MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 353 Figs. 790, 791, and 792 are side, plan, and end views of a connecting-rod ofthe Southwark Foundry, of Philadelphia, used on their fast-running Porter-Allen engines. The cross-head end is a strap-end^ while that of the crank is a box-end^ andof larger…
Mechanical drawing
