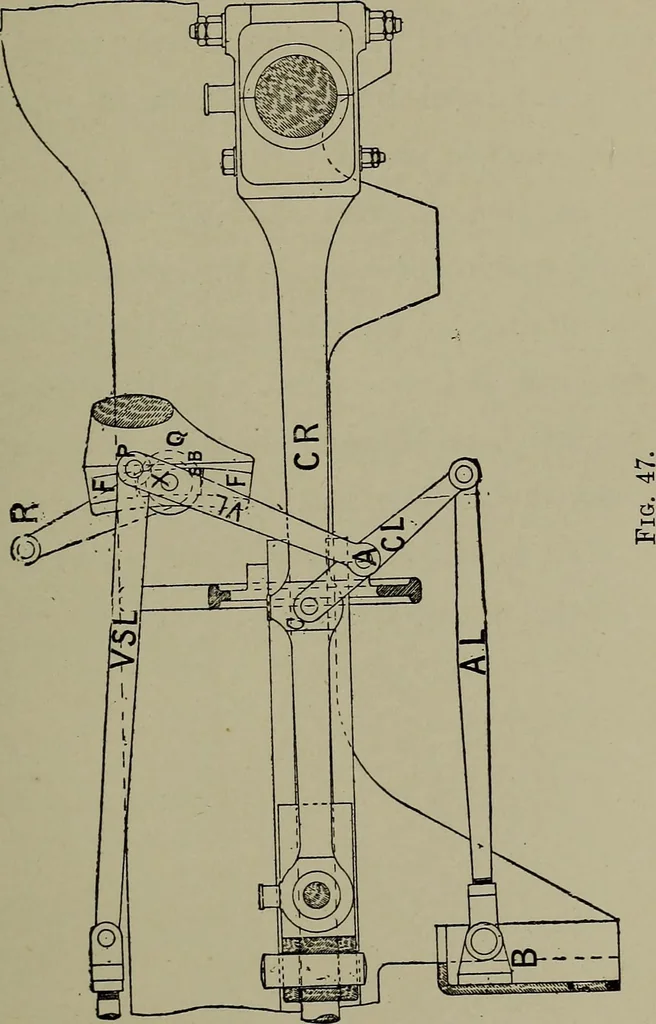

then are pivoted to the valve-spindle con-necting-rod VSL, which connects with the valve-^pindle and the slide-valve. The lower end of thedouble links CL is connected to a radial rod AL,which is pivoted to a fulcrum B, bracketed to theframes. The slot-link FF (the radius of which isstruck from the… … necting-rod (to which the connecting-link is attached)describes an oval, the point A of the latter describes 154 MODEL ENGINE CONSTRUCTION. a flattened ellipse, thereby imparting an equal motionto the point X. The motion is reversed by the leverR, which is fixed to one end of the quadrant-shaftQ;…
