Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 294

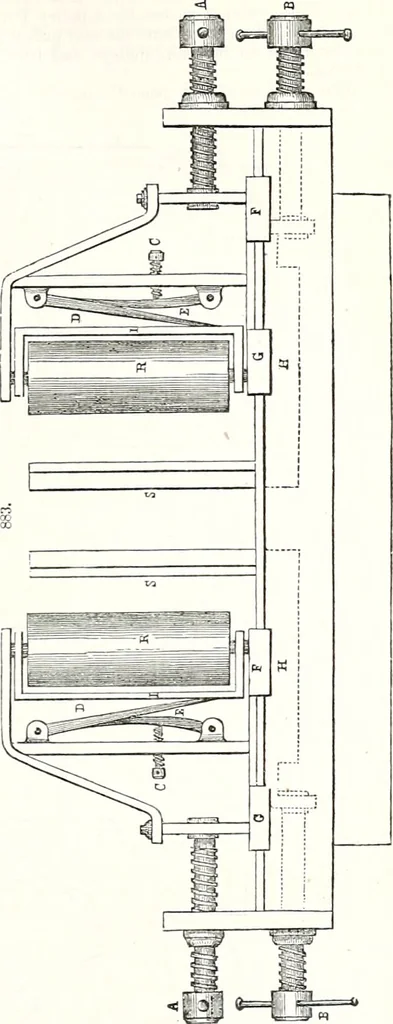

e supported in boxes N N N, <tc. Beneath each of these series of cutters is one of aseries of blades or horizontal knives 0 0 0, &c, which is attached to a head-piece or holder P. The endsof the said head-piece have adjusting-screws Q R, Q R, applied to them in such manner as to admit ofthe… … 292 CLOTH-SHEARING MACHINE. upper edge is placed somewhat above the under surface of the knife or blade 0; the position of saicrule S, and the top of it with respect to the cutters and blades, being as seen in the drawings. Each olthe series of revolving cutters has a pulley T fixed on it. There is…
